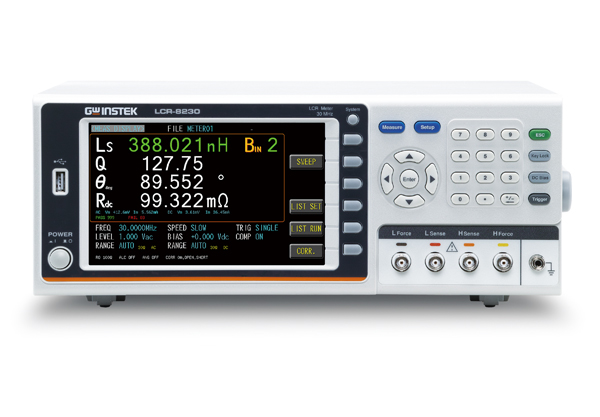

GWinstek LCR-8220 High-Frequency LCR Meter (10Hz ~ 20MHz; 0.08%)

SPECIFICATION

TEST FREQUENCY: DC, 10Hz ~ 20MHz; 6 Digits, ±0.0007%

OUTPUT IMPEDANCE: 25Ω / 100Ω SELECTABLE

BASIC ACCURACY: ±0.08%

TEST SPEED

MAX: 25ms(>10kHz), FAST: 50ms(>20Hz), MEDIUM: 100ms

SLOW: 300ms, SLOW2: 600ms

TEST SIGNAL LEVEL

AC Voltage:10mV ~ 2Vrms (FREQ. ≦ 1MHz), 10mV ~1Vrms (FREQ. > 1MHz or FREQ. ≦ 1MHz and RO=25Ω)

AC Current: 100μA ~ 20mArms (RO=100Ω), 200μA ~ 40mArms (RO=25Ω)

DCR Voltage:1Vdc (40mA max.)

MEASUREMENT PARAMETERS

Maximum four parameters can be measured and displayed at the same time

Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), AC Resistance (Rs / Rp), Quality Factor (Q),

Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle (θd / θr),

Susceptance (B), DC Resistance (Rdc)

LIST MEASUREMENT

Listed Steps: 15

Listed Parameters: Freq/Vac/Iac/DC Bias/Comp/BIN

Trigger: AUTO, REPEAT, SINGLE

SWEEP MEASUREMENT

Swept Graphical: Two of measurement parameters

Swept Parameters: Freq/Vac/Iac, Keep Trace

OTHER FUNCTIONS

Auto Level Control (ALC): Standard

DC Bias: 0 ~ ±12V

Handler: PASS, FAIL and OK, NG or BIN 1-9

OTHER FEATURES

Correction: Open/Short/HF Load/Load

V/I Monitor: Vac, Iac, Vdc, Idc

Comparator: Value, Δ , Δ %

Buzzer: OFF, Pass, Fail

Average: 1 to 64

DISPLAY: 7" LCD color display (800x480)

INTERFACE: USB/GPIB/LAN/RS-232/Handler/USB Host/TRIGGER Input

POWER SOURCE: AC 100V~240V, 50/60Hz; Consumption: 65VA (max.)

DIMENSIONS & WEIGHT 346 (W) X 145 (H) X 335 (D) mm; Approx. 3.3kg

Included Accessories

Safety Instruction x 1, CD x1(user manual),

Power cord x 1, Test lead LCR-06B x 1
