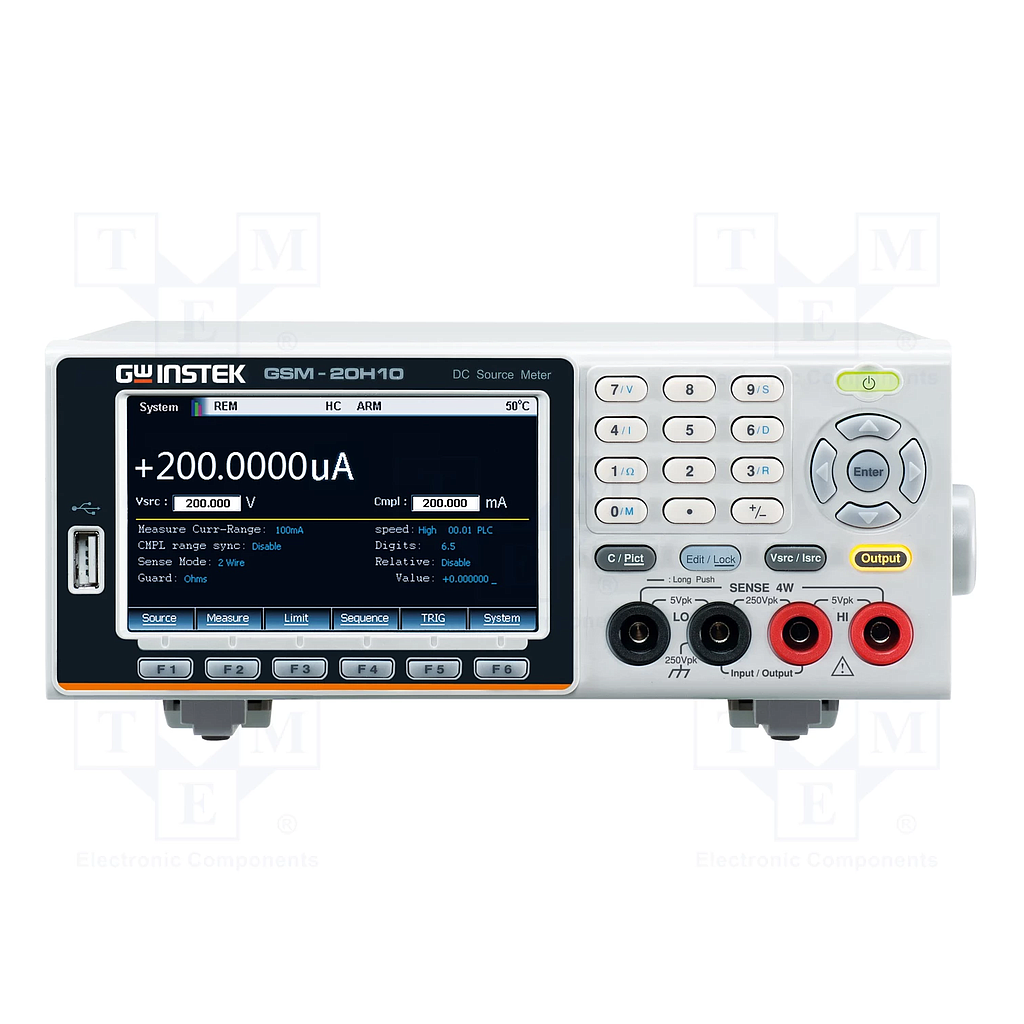

GW INSTEK GSM-20H10 Precision Source Meter (1-CH; ±210V; ±1.05A; 22W)

Source:

- Channels: 1

- Max. Range: Digits: 6 1/2

Output: Voltage: ±210V

Current: ±1.05A

Power: 22W

Resolusion: Voltage: 5µV

Current: 50pA

DC voltage measuring range: ±200mV/2V/20V/200V

DC current measuring range: ±1µA/10µA/100µA/1mA/10mA/100mA/1A

Resistance measuring range: 2Ω/20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

Dimensions: 214x86x356.5mm

Weight: 4.8kg

Measurement: DC current, DC voltage, resistance

Storage temperature: -20~70°C

Storage Humidity: <80%

Interface: GPIB, LAN, RS232, USB (TMC)

Supply voltage: 90-264VAC; 50/60Hz

Power consumption; 190W

Included accessories: CD (User manual) x 1, Power cord , Test lead(GTL-207A x 1,GTL-203A x 1, GTL-204A x 1)

Optional accessories: GTL-246: USB Cable (USB 2.0 Type A-Type B Cable,4P)

GTL-258: GPIB Cable, 2000mm
