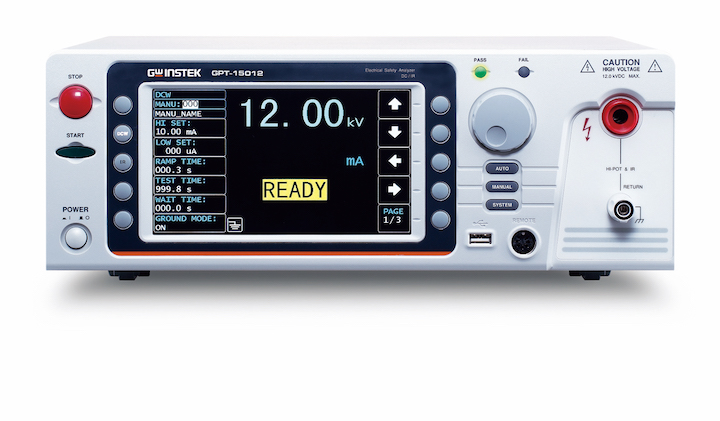

GW INSTEK GPT-15012 Electrical Safety Analyzer (DC 12kV / IR 5kV)

DC WITHSTANDING

Output-Voltage Range: 0.050kV~12.00kV

Output-Voltage Resolution: 1V

Output-Voltage Accuracy: ±(1% of setting+5V)[no load]

Maximum Rated Load: 120W(12kV/10mA)

Maximum Rated Current: 10mA(0.5kV<V≦12kV);2m (0.05kV≦V≦0.5kV)

Voltage Regulation: ±(1%+5V)[maximum rated load→no load]

Voltmeter Accuracy: ±(1%ofreading+5V)

Current Measurement Range: 1μA~10.00mA

Current Best Resolution: 0.1μA/1μA/10μA

Current Measurement Accuracy:

±(1.5% of reading+3μA)when I Reading<1mA

±(1.5% of reading+30μA)when I Reading≧1mA

Current Offset: 5μA Maximum

Window Comparator Method: Yes

ARC Detect: Yes

RAMP UP(Rise Time): 0.1s~999.9s

RAMP DOWN(Fall Time): 0.0s~999.9s

TIMER(Test Time): OFF,0.3s~999.9s

TIMER Accuracy: ±(100ppm+20ms)

WAIT TIME: 0.0s~999.9s

GND: ON/OFF

INSULATION RESISTANCE

Output Voltage: 50V~5000Vdc

Output-Voltage Resolution: 50V

Output-Voltage Accuracy: ±(1%ofsetting+5V)[no load]

Resistance Display

Resistance Measurement

TestVoltage/MeasurementRange/Accuracy

50V≦V≦450V

0.1MΩ~1MΩ：±(5% of reading+3 count)

1.1MΩ~50MΩ：±(5% of reading+ 1 count)

50.1MΩ~2GΩ：±(10% of reading+ 1 count)

500V≦V≦1200V

0.1MΩ~1MΩ：±(5% of reading+3 count)

1.1MΩ~500MΩ：±(5% of reading+1 count)

500.1MΩ~9.999GΩ：±(10% of reading + 1count)

10GΩ~50GΩ：±(20% of reading+ 1 count)

1250V≦V≦5000V

0.1MΩ~1MΩ：±(5% of reading +3 count)

1.1MΩ~500MΩ：±(5% of reading+1 count)

500.1MΩ~9.999GΩ：±(10% of reading+1 count)

10GΩ~50GΩ：±(15% of reading+1 count)*

Voltage Regulation: ±(1%+5V)[maximum rated load→no load]

Voltmeter Accuracy: ±(1% of reading+5V)

Short-CircuitCurrent: 10mA max.

Output Impedance: 2kΩ

Window Comparator Method: Yes

RAM PUP(Rise Time): 0.1s~999.9s

RAMP DOWN(Fall Time): 0.0s~999.9s

TIMER(Test Time): OFF,0.3s~999.9s

TIMER Accuracy: ±(100ppm+20ms)

WAIT TIME: 0.0s~999.9s

GND: ON/OFF

MEMORY

Single Step Memory: MANU：100blocks

Automatic Testing Memory: AUTO: 100 blocks,manu per auto：10

INTERFACE

Front Panel: USBhost,REMOTE

Rear Panel: RS-232C,USBdevice,Signal I/O,RearOutput

Option: GPIB,LAN

DISPLAY: 7”colorLCD

POWER SOURCE: AC100V~240 ±10%,50Hz/60Hz;Power consumption: 400VAmax.

DIMENSION & WEIGHT: 380(W)x148(H)x492(D)mm;Approx.9.8kg
