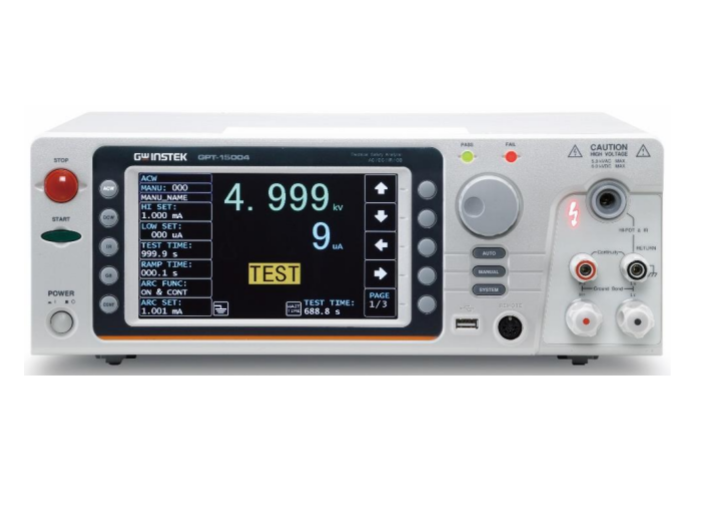

GW INSTEK GPT-15004 Electrical Safety Analyzer (ACW/DCW/IR/GB/GC)

AC WITHSTANDING (ACW):

Output-Voltage Range: 0.050k~5.000kV

Output-Voltage Resolution: 1V

Output-Voltage Frequency: 50 Hz / 60 Hz selectable

Voltage Regulation: ± (1% + 5V) [maximum rated load → no load]

Voltmeter Accuracy: ± (1% of reading + 5V)

Current Measurement Range: 1μA~100.0mA ±(1.5% of reading + 30μA)

Current Best Resolution: 1μA / 10μA/ 100μA

DC WITHSTANDING (DCW):

Output-Voltage Range: 0.050kV~6.000kV ± (1% of setting + 5V) [no load]

Output-Voltage Resolution: 1V

Maximum Rated Load: 100W (5kV/20mA)

Maximum Rated Current:

20mA (0.5kV< V ≦6kV)

2mA (0.05kV≦ V ≦0.5kV)

Voltage Regulation: ± (1% + 5V) [maximum rated load → no load]

Voltmeter Accuracy: ± (1% of reading + 5V)

Current Measurement Range: 1μA~20.00mA

Current Best Resolution 0.1μA /1μA /10μA

Current Measurement Accuracy:

±(1.5% of reading + 3μA) when I Reading < 1mA

± (1.5% of reading + 30μA) when I Reading ≧1mA

INSULATION RESISTANCE (IR):

Output Voltage: 50V~1200V dc ± (1% of setting + 5V) [no load]

Output-Voltage Resolution: 50V

Resistance Measurement:

Test Voltage: Display Range: Measurement Range / Accuracy

- 50V≦V≦100V: 0.1MΩ~ 10.00GΩ:

- 150V≦V≦450V: 0.1MΩ~ 20.00GΩ:

0.1MΩ~1MΩ：±(5% of reading + 3 count)

1 MΩ~50MΩ：±(5% of reading + 1 count)

51MΩ~2GΩ：±(10% of reading + 1 count)

- 500V≦V≦1200V: 0.1MΩ~ 50.00GΩ

0.1MΩ~1MΩ：±(5% of reading + 3 count)

1 MΩ~500MΩ：±(5% of reading + 1 count)

501MΩ~9.999GΩ：±(10% of reading + 1 count)

10.00GΩ~50.00GΩ：±(20% of reading + 1 count)*

Voltage Regulation: ±(1% + 5V) [maximum rated load → no load]

Voltmeter Accuracy: ± (1% of reading + 5V)

Short-Circuit Current: 10mA max.

Output Impedance: 2kΩ

Ground Bond (GB):

Output-Current: 03.00A~32.00A ac

Output-Current Resolution: 0.01A

Output-Current Accuracy:

3A≦ I≦ 8A：±(1% of reading + 0.2A)

8A<I≦ 32A：±(1% of reading + 0.05A)

Test-Voltage: 8Vac max (open circuit)

Test-Voltage Frequency: 50Hz/60Hz selectable

Ohmmeter Measurement Range: 1mΩ~ 650mΩ

Ohmmeter Measurement Resolution: 0.1mΩ

Ohmmeter Measurement Accuracy: ±(1% of reading + 2 mΩ)

Ground Continuity GC(CONT): 100mA (Fixed)

Ohmmeter Meas. Range: 0.10Ω~ 70.00Ω

Ohmmeter Meas. Resolution: 0.01Ω ±(10% of reading + 2 Ω)

Interface: Rear Output, RS-232C,USB device, Signal I/O, and Optional GPIB/LAN

Display: 7” color LCD

Power Source & Consumption: AC 100V~240V ± 10%, 50Hz/60Hz; Max. 1000VA

Dimension & Weight: 380(W) x 148(H) x 492(D) mm; Approx. 17kg

Included Accessories:

Quick Start Guide x 1, CD x1 (completed user manual)

Power cord x 1, Interlock key x 1, Remote terminal Cable GHT-119 x 1

Test lead GHT-115 x 1, GTL-215 x 1

Optional Interface: GPIB/ LAN

Optional Accessories:

GHT-113: High Voltage Test Pistol

GHT-117: High Voltage Adapter Box

GHT-118: High Voltage / Ground Bond Adapter Box

GHT-205: High Voltage Test Probe

GTL-232: RS232C Cable, 9-pin Female to 9-pin, null Modem for Computer

GTL-246: USB Cable, A-B type, approx. 1.2m

GTL-248: GPIB Cable, approx. 2m

GRA-440: Rack Mount Kit
