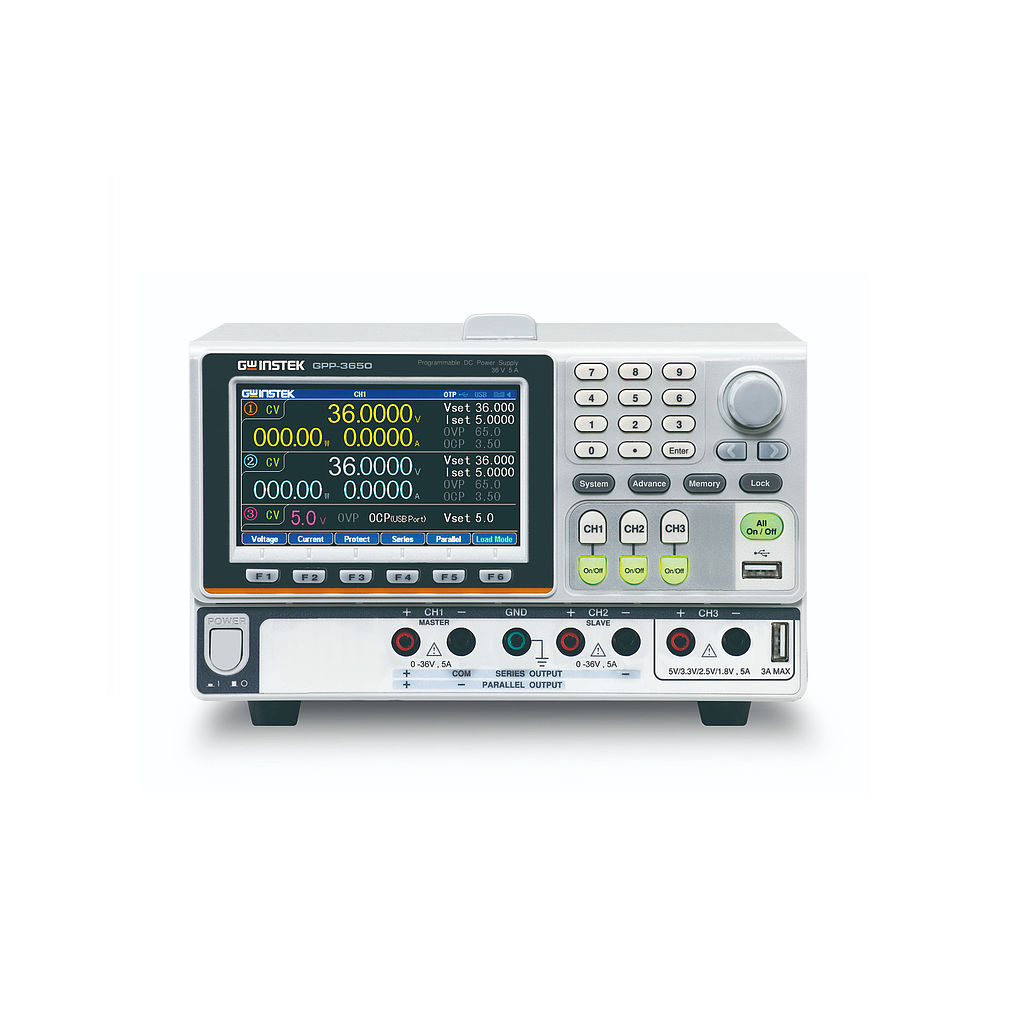

GW INSTEK GPP-3650 Triple-Channel Programmable DC Power Supply (3CH, 385W)

Output Mode:

Number of Channel: CH1, CH2, CH3

CH1/ CH2/ CH3

Voltage: 0 ~ 36.000V/ 0 ~ 36.000V/ 1.8V/2.5V/3.3V/5.0V, ±5%

Current: 0 ~ 5.0000A/ 0 ~ 5.0000A/ 5A (USB Port 3A)

Tracking Series Voltage / Current (CH1,CH2/ CH3): 0 ~ 72.000V / 0 ~ 5.0000A/ -

Tracking Parallel Voltage / Current (CH1,CH2/ CH3): 0 ~ 36.000V / 0 ~ 10.0000A/ -

Constant Voltage Operation

CH1, CH2/ CH3

Line Regulation: ≤ 0.01% + 3mV/ ≤ 3mV

Load regulation: ≤ 0.01% + 5mV (rating current ≤ 10A/ ≤ 5mV

Ripple & noise (5Hz-1MHz): ≤1mVrms/ ≤ 2mVrms

Transient recovery time: ≤100µs (50% load change，minimum load 0.5A

Temperature coefficient: ≤ 300ppm/°C

Constant Current Operation

Line Regulation: ≤ 0.01% + 3mA

Load regulation: ≤ 0.01% + 3mA

Ripple & noise: ≤ 2mArms

DC Load Mode: CV Mode, CC Mode, CR Mode

General

Operation Environment:

Indoor use, Altitude: ≤ 2000m

Ambient temperature: 0 ~ 40°C

Relative humidity: ≤ 80%

Storage Environment:

TEMPERATURE: -10°C ~ 70 °C

HUMIDITY: ≤70%

Power Input: AC 100V/120V/220V/230V±10%, 50/60Hz

Power Consumption: 900VA, 680W

Accessories: CD User manual x1, Quick Start manual x1, Power Code x1, Test lead: GTL-104A x 3, (Europe) Test lead: GTL-204A x 3, GTL-201A x1

Dimensions: 213 (W) x 145 (H) x 362 (D) mm

Weight: Approx. 10kg

Standard: RS-232, USB; Optional: LAN or GPIB+LAN
