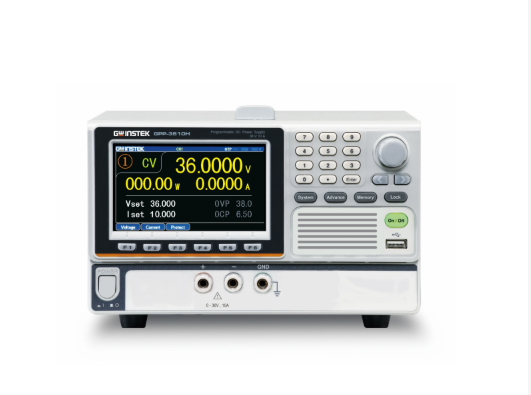

GW INSTEK GPP-3610H Single-Channel Programmable DC Power Supply (CH1, 36V/10A)

Number of Channel: CH1

Voltage: 0 – 36.000V

Current: 0 – 10.0000A

Constant Voltage Operation:

Line Regulation: ≤ 0.01% + 3mV

Load Regulation: ≤ 0.01% + 5mV

Ripple & Noise (5Hz–1MHz): ≤ 2mVrms

Transient Recovery Time: ≤100μs (50% load change, minimum load)

Temperature Coefficient: ≤ 300ppm/°C

Constant Current Operation:

Line Regulation: ≤ 0.01% + 3mA

Load Regulation: ≤ 0.01% + 3mA

Ripple & Noise: ≤ 2mArms

Resolution:

Programming (Voltage/Current): 1mV / 0.2mA

Readback (Voltage/Current): 0.1mV / 0.2mA

Meter:

Full Scale (V/A): 36.5000V / 10.2000A

Programming Resolution: 5 digits / 6 digits

Readback Resolution: 6 digits / 6 digits

Setting Accuracy (Voltage/Current):

Voltage: (0.03% + 10mV)

Current: (0.3% + 10mA)

Readback Accuracy (Voltage/Current):

Voltage: (0.03% + 10mV)

Current: (0.3% + 10mA)

DC Load Mode:

Voltage Range: 1 – 36.50V

Current Range: 0 – 10.200A

Power Range: 0 – 100.00W

CV Mode:

CH1: 1.500V – 36.50V

Accuracy: ≤(0.1% + 30mV), Resolution: 10mV

CC Mode:

CH1: 0 – 10.200A

Accuracy: ≤(0.3% + 10mA), Resolution: 1mA

CR Mode:

CH1: 1Ω – 1kΩ

Accuracy: ≤(3% + 1Ω), Resolution: 1Ω

Protection:

OVP: OFF, ON (0.5V – 38.0V), Accuracy: ±100mV, Resolution: 100mV

OCP: OFF, ON (0.05A – 10.5A), Accuracy: ±20mA, Resolution: 10mA

Insulation Resistance:

Between chassis and terminal: ≥ 20MΩ (DC 500V)

Between chassis and DC power: ≥ 30MΩ (DC 500V)

General:

Environment: Indoor use, Altitude ≤ 2000m

Operating Temp: 0 – 40°C, RH ≤ 80%

Installation category: II, Pollution degree: 2

Storage: -10°C – 70°C, RH ≤ 70%

Power Input: 100/120/220/230V ±10%, 50/60Hz

Power Consumption: 90VA, 68W

Size & Weight: 213(W) × 88(H) × 362(D) mm, Approx. 10kg
