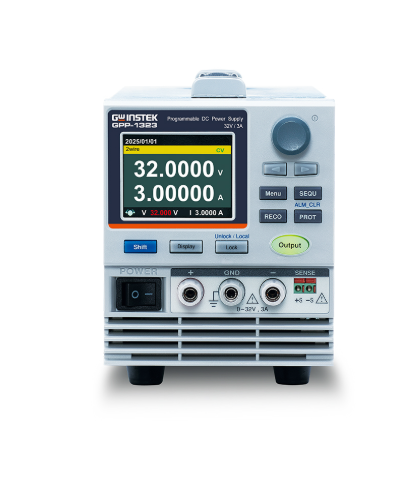

GW INSTEK GPP-1323 Single Channel Programming Linear DC Power Supply (32 V, 3 A, 96 W, USB, LAN)

OUTPUT RATING:

Output Voltage: 0.000 V to 32.000 V

Output Current: 0.0000 A to 3.0000 A

Output Power: 96 W

CONSTANT VOLTAGE OPERATION

Line Regulation: ± (0.01 % of setting + 3 mV)

Load Regulation:

≤ 0.01 % + 3 mV (rating current ≤ 3 A)

≤ 0.02 % + 5 mV (rating current > 3 A)

Transient Response: < 100 µs

Ripple Noise: 0.8 mVrms

Setting Range: 0 V to 33.600 V

Rise Time: ≤ 100 ms

Fall Time: ≤ 100 ms

Maximum Remote Sensing Compensation Voltage (Single Line): 0.5 V

Temperature Coefficient (TYP.): 300 ppm/℃

CONSTANT CURRENT OPERATION

Line Regulation: ≤ 0.1 % + 3 mA

Load Regulation: ≤ 0.1 % + 3 mA

Setting Range: 0 A to 3.1500 A

Ripple Noise (Arms): ≤ 2 mArms

Temperature Coefficient (TYP.): 300 ppm/℃

GENERAL SPECIFICATIONS

Display: 2.4-inch TFT LCD

Interface :

LAN: MAC Address, Gateway IP Address, Instrument IP

Address, Subnet Mask

USB: Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC/TMC

GPIB (Factory Optional): SCPI-1993, IEEE 488.2 compliant interface

Power Source: AC (100 V, 120 V, 220 V, 240 V) ± 10 %, 50 or 60 Hz

Power Consumption: 300 VA

Max. Inrush Current: 30 A max or less

Dimensions & Weight: 107 mm x 124 mm x 313 mm (W x H x D) (not including protrusions), Approx. 5.5 kg
