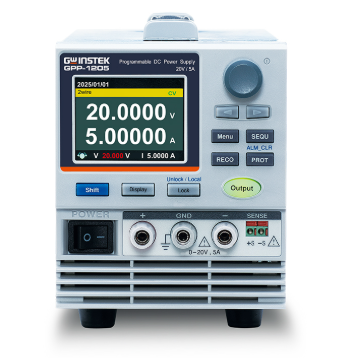

GW INSTEK GPP-1205 Single Channel Programming Linear DC Power Supply (0V ~20V, 0A ~ 5A, 100 W)

OUTPUT CHARACTERISTICS

Output Voltage: 0.000 V – 20.000 V

Output Current: 0.0000 A – 5.0000 A

Output Power: 100 W

CONSTANT VOLTAGE (CV) MODE

Line Regulation: ±(0.01 % of setting + 3 mV)

Load Regulation: ≤ 0.02 % + 5 mV (rated current > 3 A)

Transient Response: < 100 µs

Ripple Noise: 0.8 mVrms

Setting Range: 0 V – 21.000 V

Rise/Fall Time: ≤ 100 ms

Maximum Remote Sensing Compensation Voltage (Single Line): 0.5 V

Temperature Coefficient (Typical): 300 ppm/°C

CONSTANT CURRENT (CC) MODE

Line Regulation: ≤ 0.1 % + 3 mA

Load Regulation: ≤ 0.1 % + 3 mA

Setting Range: 0 A – 5.2500 A

Ripple Noise (Arms): ≤ 2 mArms

Temperature Coefficient (Typical): 300 ppm/°C

DC LOAD MODE

Display Voltage: 3.000 V – 20.000 V

Current: 0 A – 5.0000 A

Power: 100 W

CV Mode Setting Range: 3.000 V – 20.000 V

Setting/Readback Accuracy: ≤ 0.1 % + 30 mV

Resolution: 1 mV

CC Mode Setting Range: 0 A – 5.0000 A

Setting/Readback Accuracy: ≤ ±0.3 % + 10 mA

Resolution: 0.1 mA

GENERAL SPECIFICATIONS

Display: 2.4-inch TFT LCD

Interface

LAN:

MAC Address, Gateway IP Address, Instrument IP

Address, Subnet Mask

USB: Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC/TMC

GPIB (Factory Optional): SCPI-1993, IEEE 488.2 compliant interface

Power Source: AC (100 V, 120 V, 220 V, 240 V) ± 10 %, 50 or 60 Hz

Power Consumption: 300 VA

Max. Inrush Current: 30 A max or less

Dimensions & Weight: 107 mm x 124 mm x 313 mm (W x H x D) (not including protrusions), Approx. 5.5 kg
