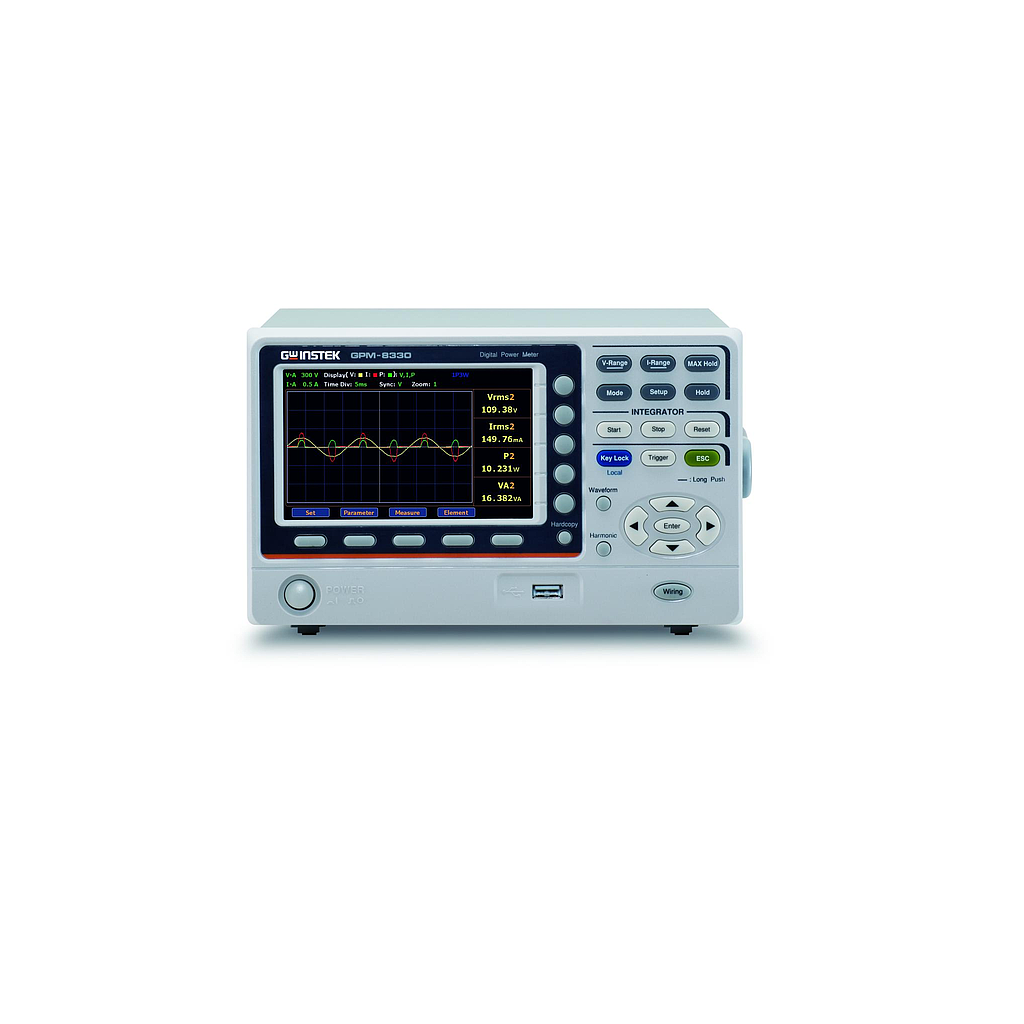

GW INSTEK GPM-8330 Digital Power Meter (3CH, 300 kHz, 7.5000~60.000kW)

Channel: 3

Wiring Method: 1P3W, 3P3W, 3P4W, 3V3A

Display: 5” TFT LCD(800*480)

Freq. Range: DC,0.1~100kHz

Sample Rate: 300 kHz

Display Rate: 0.1~20 sec

Input Resistance : A:5mΩ, V:2MΩ

Max input V,A: 1000V, 30A

Harmonics Analysis / Order: Yes / 50

Total Harmonics Distortion: Yes

Parameters: V, Vpk, A, Apk, W, Wpk, VA, var, PF, DEG, THDV%, THDA%, TIME, VHz, AHz, Wh, Wh±, Ah, Ah±, MATH, V˚, A˚, V%, A%, W%, MCR

V Range: 15.000/30.000/60.000/ 150.00/300.00/600.00/ 1000.0V

CF: 3 or 6 or 6A (selectable)

V Accuracy: ±(0.1%rdg+0.05%rng)

A Range: 500.00m/ 1.0000/2.0000/5.0000/ 10.000/20.000 A

CF: 3 or 6 or 6A (selectable)

A Accuracy: ±(0.1%rdg+0.05%rng)

Power Range: 7.5000~60.000kW (42 ranges)

Power Accuracy: ±(0.1%rdg+0.05%rng)

Interface: RS232, USB, LAN, opt. GPM-DA12 (Mini GPIB+DA12)

Dimensions(HWD): 132x220x402.5mm, 3.8kg
