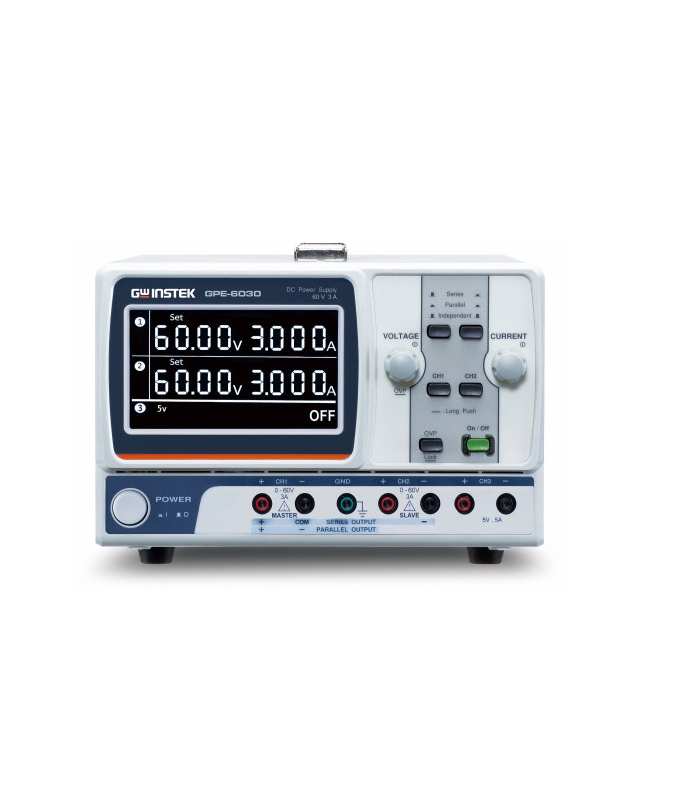

GW INSTEK GPE-6030 Triple-Channel DC Power Supply (385W, 60V, 3A)

CH1&CH2/ CH3

Output:

Voltage: 0 ~ 60.00V*2/5V,±5%

Current: 0 ~ 3.000A*2/ 5A

Voltage/Current(MAX): 62V, 3.2A

Tracking Series: 0 ~ 120V, 0 ~ 3A

Tracking Parallel: 0 ~ 60V, 0 ~ 6A

Load Regulation:

Voltage: ≤0.01%+5mV, ≤0.02%+5mV (≥10A)/ ≤5mV

Current: ≤0.1%+3mA

Line Regulation

Voltage: ≤0.01%+3mV/ ≤3mV

Current: ≤0.1%+3mA

Ripple & Noise

Constant Voltage: ≤1mVrms (5Hz-1MHz)/ ≤1mVrms(5Hz-1MHz)

Constant Current: ≤2mArms

Setting /Read back Resolution

Voltage(4digits): 20mV

Current(4digits): 1mA

Setting /Read back Accuracy

Voltage: ±(0.1% of reading+30mV) (4digits), ±(0.1% of reading+200mV) (3digits)

Current: ±(0.3% of reading+10mA) (4digits), ±(0.3% of reading+20mA) (3digits)

Recovery Time: ≤100µs (50% load change, minimum load 0.5A)/ ≤100µs

Temperature Coefficient: ≤300ppm/°C

Tracking Operation:

Series Regulation Tracking error:

≤ 0.2% +20mV of Master

(No Load, with load add load regulation ≤200mV)

Line : ≤0.01% + 5mV

Load : ≤ 200mV

Parallel Regulation

Line：≤ 0.01% + 3mV

Load : ≤ 0.01% + 5mV

≤ 0.02% + 5mV ( ≥10A)

Ripple & Noise: ≤2mVrms(5Hz~1MHz)

OVP:

Voltage: OFF,ON (1V ~ 65.0V)/ 5.5V

Resolution: 1V/-

Setting Accuracy: ≤±1V
