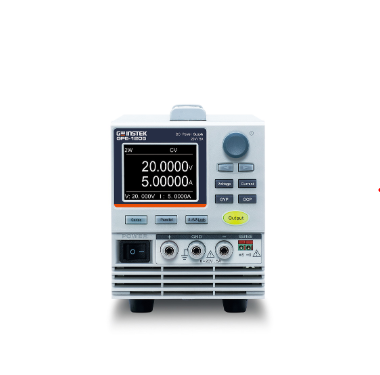

GW INSTEK GPE-1205 Single Channel Linear DC Power Supply (100W, 0~20V, 0~5A)

Output Ratings

Independent: 0 V ~ 20 V, 0 A ~ 5 A

Series (2 units): 0 V ~ 40 V, 0 A ~ 5 A

Parallel (2 units): 0 V ~ 20 V, 0 A ~ 10 A

Constant Voltage Operation

Line Regulation: ≤ 0.01 % + 3 mV

Load Regulation: ≤ 0.01 % + 5 mV

Ripple & Noise: ≤ 0.5 mVrms (5 Hz to 1 MHz)

Setting Range: 0 V ~ 21 V

Setting/Readback Accuracy: ± (0.03 % of reading + 10 mV)

Setting/Readback Resolution: 1 mV / 0.1 mV

Max Remote Sensing Compensation Voltage: 1 V

Recovery Time: ≤ 100 µs (50 % load change, minimum load 0.5 A)

Temperature Coefficient: ≤ 300 ppm/°C

Constant Current Operation

Line Regulation: ≤ 0.2 % + 3 mA

Load Regulation: ≤ 0.2 % + 3 mA

Ripple & Noise: ≤ 2 mArms

Setting Range: 0 A ~ 5.25 A

Setting/Readback Accuracy: ± (0.3 % of reading + 10 mA)

Setting/Readback Resolution: 0.1 mA / 0.01 mA

Temperature Coefficient: ≤ 300 ppm/°C

Protection

OVP Range: OFF, ON (1.0 V ~ 22.0V))

OVP Resolution: 100 mV

OVP Accuracy: ≤ ± 100 mV

OCP Range: OFF, ON (0.25 A ~ 5.5 A)

OCP Resolution: 10 mA

OCP Accuracy: ≤ ± 20 mA

Display

2.4-inch TFT LCD

Insulation

Chassis – Terminal: ≥ 20 MΩ (DC 500 V)

Chassis – AC Cord: ≥ 30 MΩ (DC 500 V)

Environment

Operation: Indoor, Altitude ≤ 2000 m; 0 °C to 40 °C; RH ≤ 80 %; Installation category II; Pollution degree 2

Storage: -10 °C to 70 °C; RH ≤ 70 %

Power Source & Consumption

AC 100 V, 120 V, 220 V, 240 V ± 10 %, 50/60 Hz

Power Consumption: 300 VA

Dimensions & Weight

107 mm × 124 mm × 313 mm (W × H × D)

Approx. 5.2 kg
