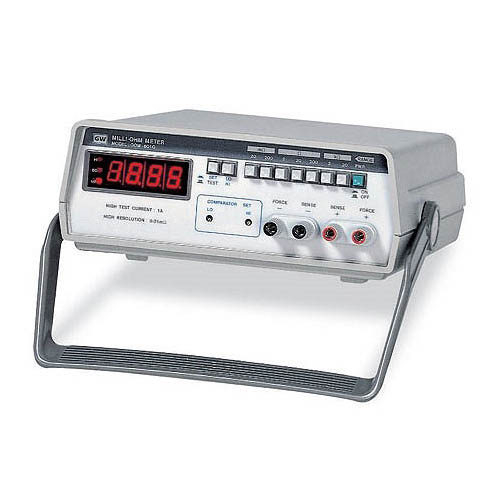

Gwinstek GOM-801H High Precision DC Milli-Ohm Meter
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelGOM-801H
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| TEST RANGE | |
| 20, 200mΩ, 2, 20, 200Ω, 2k, 20kΩ 7 Ranges | |
| TEST CURRENT (Test Voltage 0.2V) | |
| 20mΩ/200mΩ: 1A 2Ω: 0.1A 200Ω: 1mA 2kΩ: 100uA 20kΩ: 10uA | |
| ACCURACY | |
| Measurement | 20mΩ: ± (0.2% rdg + 6 digits) 200mΩ ~ 20kΩ: ± (0.2% rdg + 4 digits) |
| Setting | ± (0.2% + 6 digits) |
| RESOLUTION | |
| 0.01Ω, 0.1Ω, 1Ω, 10Ω, 100mΩ, 1Ω, 10Ω | |
| COMPARATOR | |
| HI, LO settable | |
| DISPLAY | |
| 3 1/2 digits 0.5" LED display HI, GO, LO indicator | |
| POWER SOURCE | |
| AC 100V/120V/220V/230V±10% , 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 230(W) x 95(H) x 280(D)mm Approx. 2 kg | |
