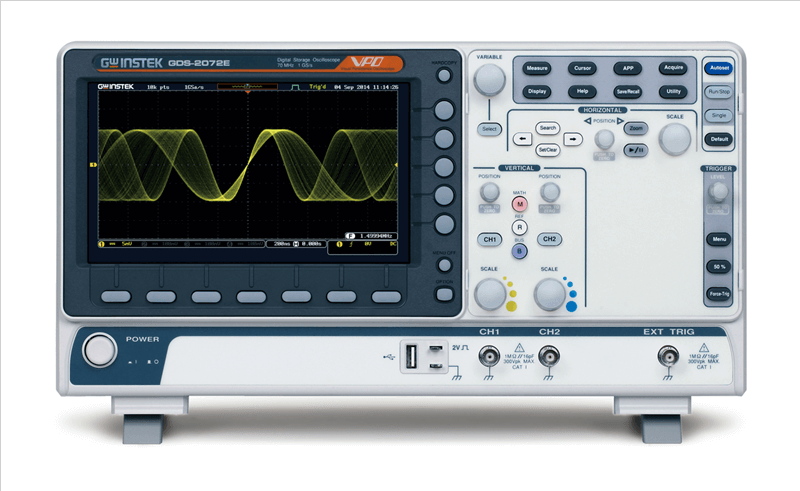

GW INSTEK GDS-2202E Digital Oscilloscopes (200Mhz, 2CH, 1Gsa / s)

* 200MHz Bandwidth Selection; 2 Channels
* 1GSa/s Real-Time Sampling Rate for Each Channel (2ch model) ;
1GSa/s Maximum Real-Time Sampling Rate (4ch model)
* Standard 10M Maximum Memory Depth and VPO Waveform Display Technology
* Waveform Update Rate of 120,000 wfm/s
* 8 ” WVGA TFT LCD Display
* FFT with Maximum 1M points to Provide Higher Frequency Domain Resolution Measurement
* High and Low Pass Digital Filter Functions
* 29,000 Sections of Segmented Memory and Waveform Search Functions
* I2C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Function
* Data Log Function Tracks Signal Changes Up To 100 hours
* Provide Remote Internet Storage Function
