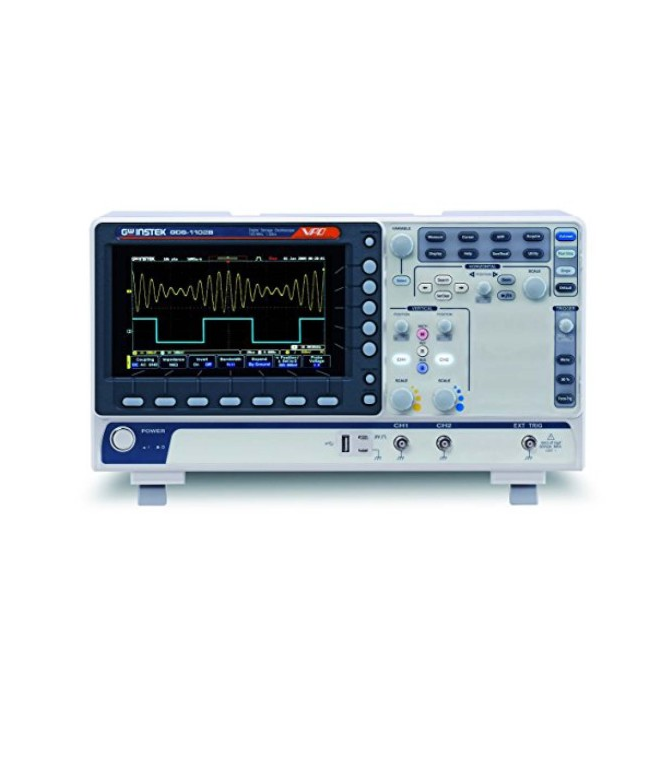

GW INSTEK GDS-1102E Digital Storage Oscilloscope (100MHz, 2 channels)

VERTICAL

Channels: 2 + Ext

Bandwidth: DC~100MHz(-3dB)

Calculated Rise Time: 3.5ns

Bandwidth Limit: 20MHz

Vertical Sensitivity Resolution: 8 bit : 1mV~10V/div

Input Coupling: AC, DC, GND

Input Impedance: 1MΩ// 16pF approx. ; GDS-1202B : 1MΩ// 14pF approx.

DC Gain Accuracy: ±3%

Polarity: Normal & Invert

Maximum Input Voltage: 300Vrms, CAT I (300Vrms CAT II with GTP-070B- 4/100B-4, 200B-4 10:1 probe)

Offset Position Range: 1mV/div : ±1.25V ; 2mV/div ~ 100mV/div : ±2.5V ; 200mV/div ~ 10V/div : ±125V

Waveform Signal Process: +,-, ×, ÷, FFT, FFTrms, User Defined Expression ; FFT: 1Mpts; FFT: Spectral magnitude. Set FFT Vertical Scale to

Linear RMS or dBV RMS ; FFT Window Display : Rectangular, Hamming, Handing, or Blackman-Harris

HORIZONTAL

Time base Range: 5ns/div ~ 100s/div (1-2-5 increments)

ROLL: 100ms/div ~ 100s/div

Pre-trigger: 10 div maximum

Post-trigger: 2,000,000 div maximum

Timebase Accuracy: ±50 ppm over any ≥1 ms time interval

Real Time Sample Rate: 1GSa/s max

Record Length: Max. 10Mpts

Acquisition Mode: Normal, Average, Peak Detect, Single

Peak Detection: 2nS (typical)

Average: selectable from 2 to 256

DISPLAY

TFT LCD Type: 7" TFT WVGA color display

Display Resolution: 800 horizontal × 480 vertical pixels (WVGA)

Interpolation: Sin(x)/x

Waveform Display: Dots, vectors, variable persistence (16ms~4s), infinite persistence

Waveform Update Rate: 50,000 waveforms per second, maximum

Display Graticule: 8 x 10 divisions

Display Mode: YT, XY

POWER SOURCE: AC 100V ~ 240V , 50Hz ~ 60Hz , Auto selection , Power consumption: 30 Watts
