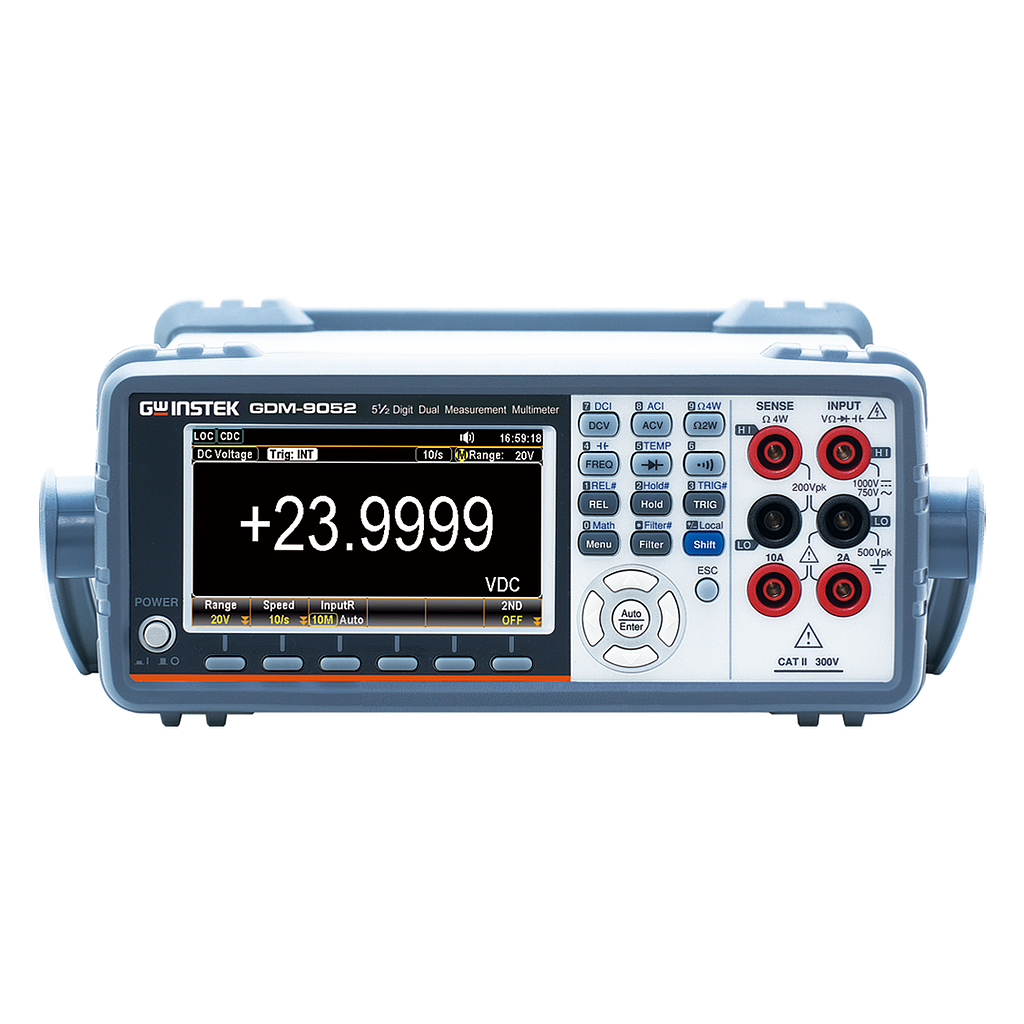

GW INSTEK GDM-9052 Dual Measurement Multimeter (5½ digit)

5½ digit display, up to 239,999 counts

4.3" TFT graphic LCD

0.012% basic DC voltage accuracy

A.I. Measurement: automatic identification and measurement for voltage, resistance, diode, and continuity—no manual selection needed

12 measurement functions: AC/DC voltage, AC/DC current, AC+DC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity, capacitance, and temperature

True RMS (AC, AC+DC) measurements

Dual measurement function: display two selected measurements simultaneously

Comprehensive math functions: Max/Min, REL/REL#, Compare, Hold, dB, dBm, MX+B, %, 1/X

Digital I/O with dual mode: standard Compare and user-defined

Standard interfaces and remote control: RS-232C and USB device (supports USBCDC and USBTMC modes) for remote control and data acquisition, with GPIB compatibility

Capacitance measurement function included

External control via digital I/O, with user-definable pin outputs for custom automation

Compact design: 268 x 107 x 302 mm, ~ 3.2 kg

Datasheet
