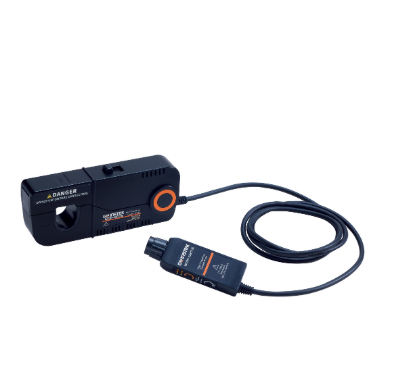

GW INSTEK GCP-2525 AC/DC Current Probe (25 MHz)

Bandwidth (-3 dB): DC to 25 MHz

DC + Peak AC MAX. (non-continuous): 250 A

Continuous Maximum Current (RMS): 170 Arms

Minimum Current: 20 mA

Rise Time: 14 ns or less

Conversion Ratio: 10 mV/A (×100), 100 mV/A (×10)

Accuracy:

10 mV/A: 1% ± 1 mV

100 mV/A: 1% ± 5 mV

Current Range (DC + Peak AC):

10 mV/A: 25 A to 250 A

100 mV/A: 20 mA to 25 A

Noise (RMS): 20 mA

Weight (Probe): 370 g

Size (Probe): 62.28 mm (W) × 151.85 mm (H) × 26.4 mm (D)

Intended Output Load: 1 MΩ

Clamp Diameter: 20mm

Power Supply: DC 12 V / 2 A

Operating Temperature and Humidity: 0°C to 50°C / 20%RH to 75%RH

Insulated Line Voltage: 600 V CAT II / 300 V CAT III
