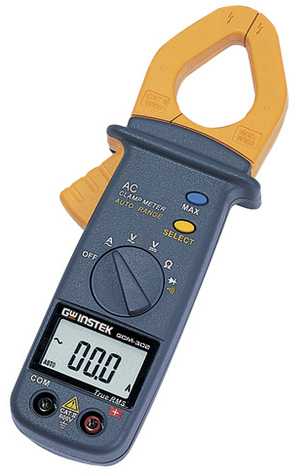

GWinstek GCM-303 Mini Clamp Meter with True RMS Measurement
ManufacturerGW INSTEK(View more products from this manufacturer)
ModelGCM-303
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| ACA | |
| Range Resolution Accuracy Frequency | 200A, 600A 0.1A, 1A ±(1.9％reading + 5digits)~±(1.9％reading + 10digits) 40Hz~500Hz |
| ACV | |
| Range Resolution Accuracy Input Impedance Frequency | 2V, 20V, 200V, 600V 0.001V, 0.01V, 0.1V, 1V ±(1.5％reading + 5digits)~±(1.5％reading + 10digits) Approx.11MΩ~Approx.10MΩ 40Hz~500Hz |
| DCV | |
| Range Resolution Accuracy Impedance | 200mV, 2V, 20V, 200V, 600V 0.1mV, 0.001V, 0.01V, 0.1V, 1V ±(0.7％reading + 3digits)~±(1.3％reading + 3digits) Approx.11MΩ~Approx.10MΩ |
| Ohm | |
| Range Resolution Accuracy Open-Loop Voltage | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ ±(1.5％reading + 5digits)~±(10％reading + 5digits) Approx.0.4V |
| DIODE | |
| Range Resolution Accuracy Open-Loop Voltage | 2V 0.001V ±(10％reading + 5digits) Approx.1.5V |
| BUZZER | |
| Range Resolution Accuracy Open-Loop Voltage | 200Ω 0.1Ω The buzzer turns on for resistances lower than 60Ω±20Ω 0.4V |
| OPERATION TEMP./HUMIDITY | |
| 0℃~50℃(32℉~122℉)/Below 80％ R.H.(No condensation) | |
| STORAGE TEMP./HUMIDITY | |
| -10℃~60℃(14℉~140℉)/Below 70％ R.H.(No condensation) | |
| DIMENSIONS & WEIGHT | |
| 189(L) × 71(W) × 37(H) mm Approx. 200g(Including Batteries) | |
