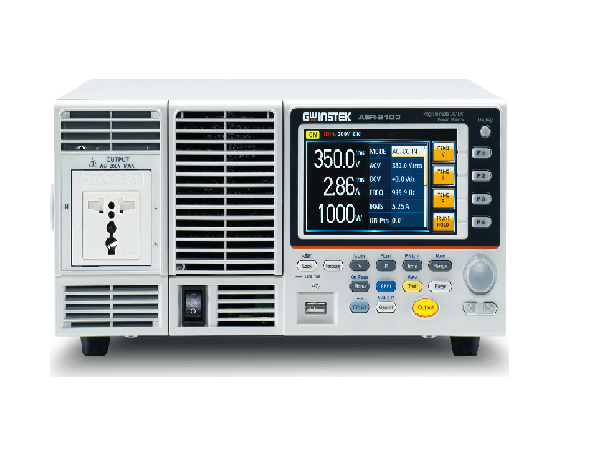

GW INSTEK ASR-2100 Programmable AC/DC Power Source (1000VA)

Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V

Output Frequency up to 999.9 Hz

DC Output (100% of Rated Power)

Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF

Voltage and Current Harmonic Analysis(THDv, THDi)

Remote Sensing Capability

OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.

Support Arbitrary Waveform Function

Output Capacity: 1000VA

Customized Phase Angle for Output On/Off

Sequence and Simulation Function(up to 10 sets)

Interface: USB, LAN(std.); RS-232+GPIB(opt.)

Built-in External Control I/O and External Signal Input

Built-in Output Relay Control

Memory Function (up to 10 sets)

Built-in Web Server
