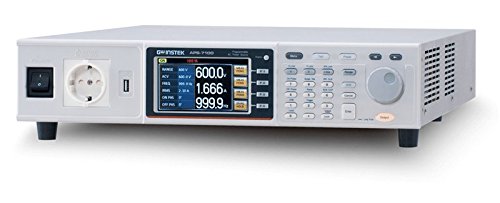

GW INSTEK APS-7050 (APS-002) AC Programmed Power Supply

Capacity: 500VA

Output voltage: 0 ~ 310Vrms

Max output current: 4.2A / 2.1A / 1.05A (APS-003)

Output current: 16.8A / 8.4A / 4.2A (APS-003)

Output frequency: 45-500Hz / ± 0.02%

Total harmonic: ≦ 0.5% at 45 ~ 500Hz

Line Regulation: 0.1%

Load Regulation: 0.5%

Frequency measurement: 45 ~ 500Hz / ± 0.1Hz (APS-003)

Measurement voltage: 0.2 ~ 600Vrms / ± 0.5% (APS-003)

Rms current measurement: 17.5A / ± 0.5% (APS-003)

Measuring power: ± 0.6% (0.01W)

PF: ± 2% (0.001)

Memory: 10

Communication: RS232 / USB CARD (APS-002 )

Protection: OCP, OPP, OHP and Alarm

Screen: 4.3 inch TFT-LCD

AC power: 115 / 230VAC

Size: 430x88x400, 24Kg

Included accessories: HDSD, APS-003 (500Hz), Test Rod, UL / CSA (APS-7050), PSE (APS-7050),

Additional accessories: APS-004 (999.9Hz)
