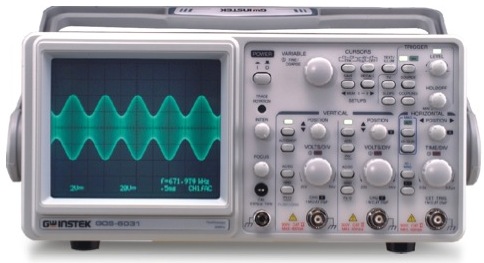

GWInstek GOS-6031 Analog Oscilloscope ( 30Mhz, 2CH)

Name: GWInstek GOS-6031 Analog Oscilloscope ( 30Mhz, 2CH)
Brand: GW INSTEK

ManufacturerGW INSTEK(View more products from this manufacturer)

ModelGOS-6031

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

The screendisplaywith8x106inchsquares
Sensitivity and Accuracy : 1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%

Bandwidth: 30MHz
Input: AC, DC, GND, Max400V
Mode: CH1, CH2, DUAL, ADD,CH2INV
Power supply:AC100V/120V/220V/230V±10%, 50/60Hz
-

CRT

Type

6-inch rectangular type with internal graticule;
0%, 10%, 90%, 100% markers. 8 x10 div(1div=1cm)

Accelerating Potential

GOS-6051:approx.10kV; GOS-6031 : approx. 2kV

Illumination

Provided (GOS-6051/6031)

Trace Rotation

Provided

Z-axis Input

Sensitivity : at least 5V ; Polarity : positive going input decrease ntensity
Usable frequency range : DC to 2MHz ; Max. input voltage : 30V (DC + AC peak) at 1kHz or less
Input Impedance:GOS-6051:approx.33kΩ ;GOS-6031:approx.47kΩ

VERTICAL SYSTEM

Sensitivity and Accuracy

1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%, 14 calibrated steps in 1-2-5 sequence

Vernier Vertical Sensitivity

Continuously variable to 1/2.5 or less of panel indicate value

Bandwidth (-3dB) and Rise Time

		Bandwidth (-3dB)	Rise Time
GOS-6051	5mV ~ 20V/div	DC ~ 50MHz	Approx. 7ns
GOS-6051	1mV ~ 2mV/div	DC ~ 7MHz	Approx. 50ns
GOS-6031	5mV ~ 20V/div	DC ~ 30MHz	Approx. 11.7ns
GOS-6031	1mV ~ 2mV/div	DC ~ 7MHz	Approx. 50ns

Maximum Input Voltage

400V (DC + AC peak) at 1kHz or less

Input Coupling

AC, DC, GND

Input Impedance

1MΩ ±2% / /approx. 25pF

Vertical Modes

CH1, CH2, DUAL (CHOP, ALT), ADD, CH2 INV

Chop Frequency

Approx. 250kHz

Dynamic Range

GOS-6051:8 div at 40MHz, 6div at 50MHz; GOS-6031:8 div at 20MHz, 6div at 30MHz

HORIZONTAL SYSTEM

Sweep Time

0.2μs ~ 0.5s/div, 20 steps selectable in 1-2-5 sequence, continuous variable control between steps at least 1 : 2.5

Accuracy

±3%, ±5% at x5/ x10MAG, ±8% at x 20MAG

Sweep Magnification

x5, x10, x20 MAG

Maximum Sweep Time
(at MAG)

GOS-6051 : 20ns/div (10ns/div are uncalibrated)
GOS-6031 : 50ns/div (10ns/div ~ 40nS/div are uncalibrated)

ALT-MAG Function

Available

TRIGGER

Trigger Mode

AUTO, NORM, TV

Trigger Source

VERT-MODE, CH1, CH2, LINE, EXT

Trigger Coupling

AC, HFR, LFR, TV-V(-), TV-H(-)

Trigger Slope

“+”or“ - ”polarity

Trigger Sensitivity

GOS-6051	20Hz~5MHz	5MHz~40MHz	40MHz~50MHz
GOS-6031	20Hz~2MHz	2MHz~20MHz	20MHz~30MHz
CH1, CH2	0.5div	1.5div	2.0div
Vert-Mode	2.0div	3.0div	3.5div
EXT	200mV	800mV	1V

TV sync pulse more than 1 div (CH1, CH2, VERT-MODE) or 200mV (EXT)

External Trigger Input

Input impedance: Approx.1MΩ//25pF(AC coupling);
Max. input voltage: 400V(DC+AC peak)at 1kHz

Hold-off Time

Variable

X-Y OPERATION

Input

X-axis: CH1 ; Y-axis: CH2

Sensitivity

1mV ~ 20V/div

Bandwidth

X-axis: DC ~ 500kHz (-3dB)

Phase Difference

3°or less from DC to 50kHz

OUTPUT SIGNAL

CH1 Signal Output

Voltage : approx. 20mV/div (with 50Ω terminated)
Bandwidth : 50Hz to at least 5MHz

Calibrator Output

Voltage : 0.5V ±3%
Frequency : approx. 1kHz, square wave

CRT READOUT

Panel Setting Display

CH1/CH2 sensitivity, sweep time, trigger condition

Panel Setting Save & Recall

10 sets

Cursor Measurement

Cursor measurement function : ΔV, ΔT, 1/ΔT
Cursor resolution : 1/25 div ;
Effective cursor range : vertical : ±3 div ; Horizontal : ±4 div
Display digits : Max. 6-digits decimal

Frequency Counter

Frequency range :GOS-6051 : 50Hz ~ 50MHz; GOS-6031 : 50Hz ~ 30MHz
Accuracy : ±0.01%
Measuring sensitivity : more than 2 div
(measuring source selected from CH1 or CH2 as synchronous signal sources)

POWER SOURCE

AC 100V/ 120V/ 230V ±10%, 50Hz/ 60Hz

DIMENSIONS & WEIGHT

275(W) x 130(H) x 370(D) mm; Approx. 7.2kg
