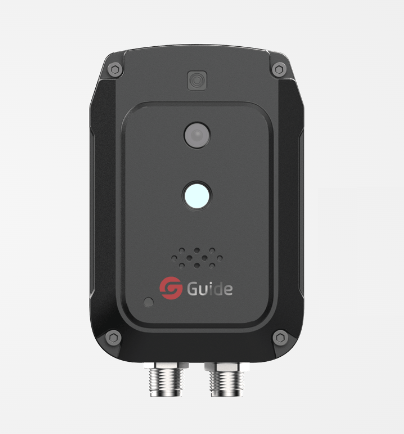

Guide NC200 Thermal Imaging Camera (-20~550℃; 256*192;≤45mK@30℃)

Temperature measurement parameters

Measurement range Low temperature mode: -20 ℃ to 150 ℃, high temperature mode: -20℃ to 550℃

Measurement accuracy: ±2℃ or ±2% (whichever is greater)

Target setting: Up to 12 targets (spot, line, rectangle, polygon and circle) can be simultaneously measured at the same time

Cold/hot spot tracking: Available

Full-screen point temperature measuring: Available

Query and export of temperature measuring informati : Available

Visible light parameters

Sensor type: 1/2.7"CMOS

Maximum resolution: 1920x1080

Minimum illuminance: Color: 0.005lux

Visible light gain control :Auto/manual

Visible light noise reduction : 2D/3D noise reduction

Backlight compensation: Available

Wide dynamic: Available

Strong-light photoinhibition : Available

Image flip1: 180°/mirror image

Exposure compensation :Available

Visible light lens: Focal length, field angle, minimum focusing distance

Fill light : White light

Image parameter

Video compression standard: Switch between three standards H.265, H.264 and MJPEG

Image coding formats: JPEG

Protocol and storage

Network protocol: IPv4/IPv6, HTTP, SMTP, RTSP, TCP, DHCP, GB/T28181, MQTT, ONVIF (automatic search device, RTSP video stream and device control)

Local storage: 4G EMMC

System function

Language version: Chinese/English

Browser: Available

User management: It supports up to 20 users and multi-level user permission management; which is divided into three levels: root user, management group and user group

Fault detecti: Network interrupt detection; IP conflict detection; Illegal access; storage exception

Hardware interface

Network interface: One 100M/1,000m Ethernet port, POE (802.3 at)

Alarm interface: 1input and 1 output

Other interface: 1-channel RS485

Environmental parameters

Working temperature: -30℃ to +60℃

Working humidity: ≤ 95%, non-condensing

Encapsulation: IP67, TVs 6000V lightning protection and surge protection

Physical parameters

Product size: ≤105mm × 71mm × 30mm (length, width and thickness)

Net weight: 300g

Installation mode: Wall mounting/tripod mounting/magnetic mounting
