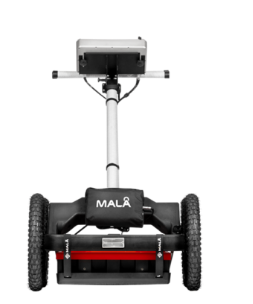

Guidelinegeo WideRange HDR MALÅ Easy Locator (Effective bandwidth: 80-950 MHz)

Controller

Processor: 1.6 GHz Intel Atom

Display: High Resolution 1024 x 768 pixels

Operating system: Linux

Memory: 8 GB compact Flash memory

Data output resolution: 32 bit (*.rd7)

Comms: Ethernet, USB, RS232 (serial)

GPS: Built-in GPS in antenna (SBAS), support for external GPS

Power supply: 10-15 V DC source

Operating time: Up to 8 hrs

Power consumption: 1.3-1.8 A

Dimensions: 430 x 360 x 180 mm, including handles

Weight: 2.5 kg / 5.5 lbs

Operating temp: -20 °C to +50 °C/O °F to 120 °F

Environmental: IP 65

Antenna

Technology: MALÄ HDR Technology

Effective bandwidth: 80-950 MHz

SNR: > 101 dB

Significant useful number of bits: > 18 bit

Scans/second: > 500

Operating time: Up to 8 hrs

Positioning: Built-in DGPS (SBAS), external GPS, wheel encoder

Power supply: Interchangeable 12 V Li-Ion batt. or ext. 12 V DC source

Power consumption: 3 A

Dimensions: 720 x 480x 190 (L x W x H)

Weight: 10.8 kg/23.8 lbs

Operating temp: -20 °C to +50 °C/O °C to 120 °F
