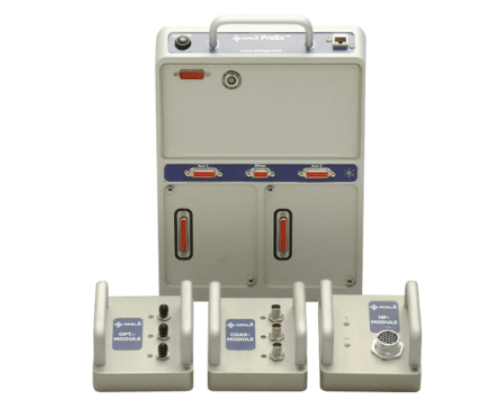

Guidelinegeo ProEx MALÅ Professional Explorer System (Antennas ranging from 30 MHz - 2.3 GHz)

Power supply: Li-Ion 12V battery

Operating time: 5 h nominal, depending on configuration

Operating temperature: -20° to +50°C / 0° to 120 °F

Environmental: IP65

Dimensions: 32.5 x 22.2 x 4.2 cm

Weight: 1.9 kg

Antennas: MALÅ Antennas ranging from 30 MHz - 2.3 GHz

Pulse repetition freq.: 100, 200 kHz, not interleaved

Data bits: 16

Max Nr of samples/trace: 2048 (Standard), 8192 (Extended)

Samplings frequency: 0.2 - >400 GHz

Signal stability: <70 ps

Communication interface: Ethernet

Communication speed: 100 Mbit/s

Data transfer rate: Antenna dependent

Acquisition modes: Distance/time/manual
