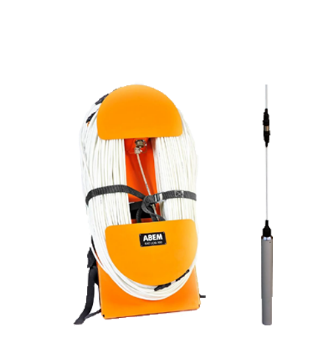

Guidelinegeo Log 300 Terrameter Log 300 (Temperature Range: 0 – 60°C)

Power supply: Power taken direct from LS 2 / LS / SAS

Cable length: 300 m

Cable markings: Every meter

Cable material: Corrosion resistant polyurethane

Cable breaking strain: 4000N

Electrode material: Stainless steel

Sonde diameter: 40 mm

Overall Dimensions: 770 x 330 x 240 mm

Weight: 16.5 kg

Transmitter: Utilises instrument transmitter (LS 2, LS or SAS)

16 inches short normal: Resistivity and induced polarization

64 inches long normal: Resistivity and induced polarization

18 feet lateral: Resistivity and induced polarization

Fluid: Resistivity

Self Potential: 0 – 1000V

Temperature Range: 0 – 60°C

Temperature precision: ± 0.01°C (0 – 20°C), ± 0.1°C (20 – 50°C)

Temperature accuracy: ± 1°C

Water Level Indicator: Graphic indicator

Datasheet
