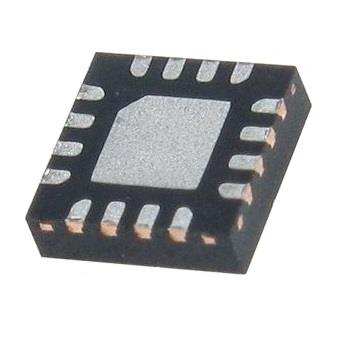

Guerrilla RF GRF5115 Low Noise Amplifiers .1-2.7GHz GaAs Gain 14.4dB

Gain: 14.4 dB

Technology: GaAs

Unit Weight: 610.625 mg

Mounting Style: SMD/SMT

Test Frequency: 1.95 GHz

Development Kit: GRF5115-EVB

NF - Noise Figure: 1.3 dB

Number of Channels: 1 Channel

Operating Frequency: 100 MHz to 2.7 GHz

Supply Voltage - Max: 5 V

Supply Voltage - Min: 2.7 V

Pd - Power Dissipation: 2 W

Operating Supply Current: 300 mA

Operating Supply Voltage: 2.7 V to 5 V

P1dB - Compression Point: 32.8 dBm

OIP3 - Third Order Intercept: 47.6 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
