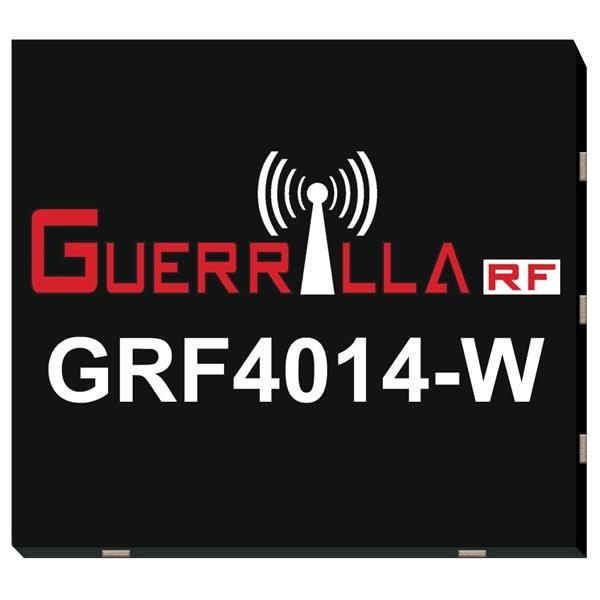

Guerrilla RF GRF4014-W Low Noise Amplifiers .1-6GHz GaAs Gain 17dB

Gain: 17 dB

Technology: GaAs

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Test Frequency: 2.3325 GHz

NF - Noise Figure: 0.8 dB

Number of Channels: 1 Channel

Operating Frequency: 100 MHz to 6 GHz

Supply Voltage - Max: 8 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 1.1 W

Operating Supply Current: 60 mA

Operating Supply Voltage: 3 V to 8 V

P1dB - Compression Point: 24 dBm

OIP3 - Third Order Intercept: 39 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
