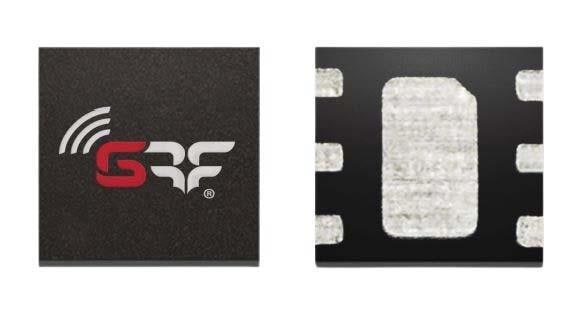

Guerrilla RF GRF2176 Low Noise Amplifiers LNA with Selectable Gain 2.3 to 6 GHz

Gain: 15.8 dB, 32.4 dB

Technology: GaAs

Isolation dB: 30 dB, 44 dB

Mounting Style: SMD/SMT

Test Frequency: 3.3 GHz to 4.2 GHz

Input Return Loss: 5.5 dB, 6.7 dB

NF - Noise Figure: 0.65 dB, 0.68 dB

Number of Channels: 1 Channel

Operating Frequency: 2.3 GHz to 2.7 GHz, 3.3 GHz to 4.2 GHz, 4.4 GHz to 5 GHz

Operating Supply Current: 28 mA, 66 mA

Operating Supply Voltage: 5 V

P1dB - Compression Point: 22 dBm

OIP3 - Third Order Intercept: 24.9 dBm, 32 dBm

Maximum Operating Temperature: + 115 C

Minimum Operating Temperature: - 40 C
