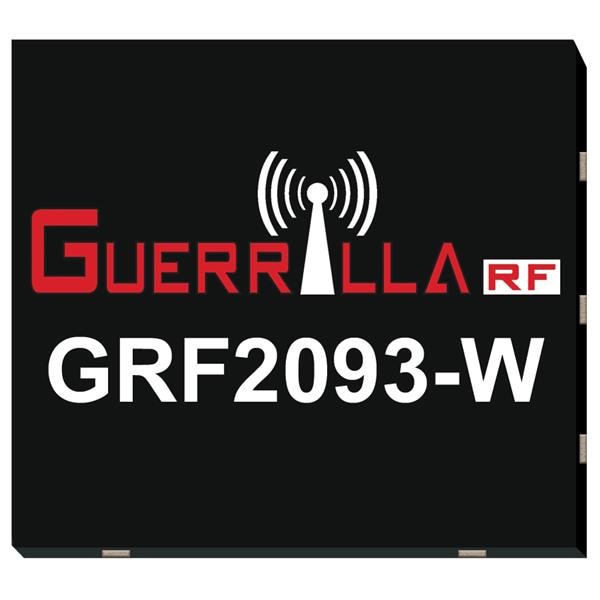

Guerrilla RF GRF2093-W Low Noise Amplifiers 5V/70 mA/2.5 GHz

Gain: 21 dB

Technology: GaAs

Unit Weight: 70 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Test Frequency: 2.3325 GHz

NF - Noise Figure: 0.37 dB

Number of Channels: 1 Channel

Operating Frequency: 1 GHz to 6 GHz

Supply Voltage - Max: 5 V

Supply Voltage - Min: 2.7 V

Pd - Power Dissipation: 1 W

Operating Supply Current: 55 mA

Operating Supply Voltage: 2.7 V to 5 V

P1dB - Compression Point: 19 dBm

OIP3 - Third Order Intercept: 36 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
