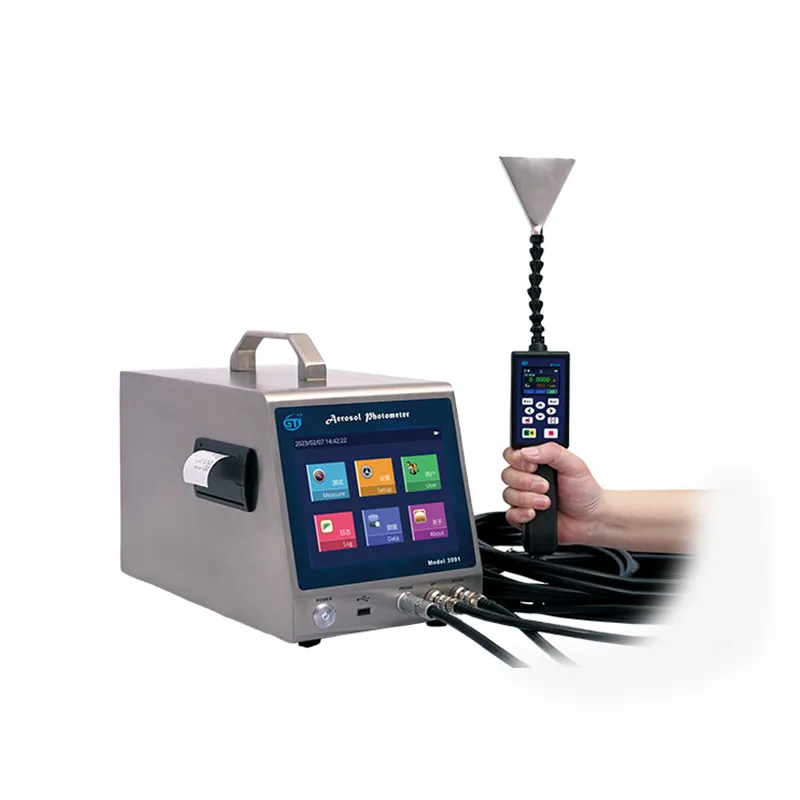

GTI 3991 Aerosol Photometer (0.0001µg/L ~ 600µg/L)

Data Accuracy: 0.0001~100.0% 8.4inch Touch LCD Screen

Dynamic Range: 0.0001µg/L～600µg/L

Accuracy: 1% of Readings（0.01~100%）

Repeatability: 0.5% of Readings （0.01~100%）

Flow Control: 1cfm （28.3L/min）±5%

Zero Building: Automatic or manually

Alarm Modes: Audible, visual and vibratory

Power-Saving Mode: Lower energy consumption

Reporting Modes: Continuous, Summary, Monitoring mode

Print: Built-in thermal printer

ID Encode: ID scanning, data classify and traceable.

Data Output: Storage, USB, Print; Logs can be traced and stored

Data Storage Capacity: 100,000 Groups

Communication: USB/ Computer

GMP Three-Level Privileged Management: set identities, assign usage permissions, generate the log report

Reagent: PAO/ DOP/ Ondina/ PolvethleneGlvcol/ Corn Oil/ MineralOil/ Paraffin Oi, and etc.

Sampling Port: Standard internal rectangular sampling port without unnecessary corners

Shell Material: SUS304 stainless steel

Operating Environment: 5 ~ 50°C (no condensation/ freezing); 5 ~ 95%RH

Storage Temperature: -20C ~ 60°C (relative humidity below 95%, no condensation)

Power: AC100~240V 50/60Hz or lithium battery (optional with built-in lithium battery pack)

Dimension/ Weight

220x260 (handle 300) x 390mm (W x H x L)

11.1kg (photometer), 1kg (probe and accessories)

Standards compliance: NSF49, IEST, ISO14644, EN61010-1:2010, EN61326:2006
