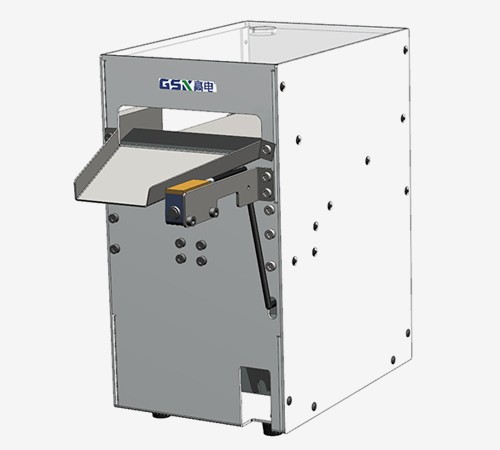

GSK BLQ-L1218 Medium Screw Extra Feeder (M1.2-M5.0)

Input voltage: AC100-240V 50/60HZ

Output voltage: DC15V 1.5A

Bunker capacity: 560CC (about 10,000 M2.5*8 screws)

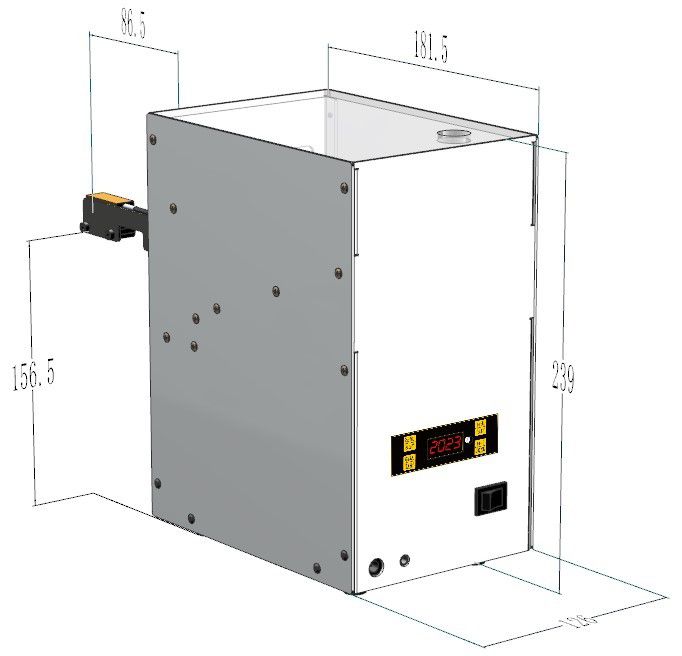

Product size: L181.5mm*W126mm*H239mm

Net weight: about 3.7kg

Suitable screw: M1.2-M5.0, length ≤15mm

Feeding method: push up type

Product Details

1. This product is a medium screw extra seeder, which is used for screw machine feeding equipment, suitable for various automatic screw locking equipment feeding system.

2. Wide range of application

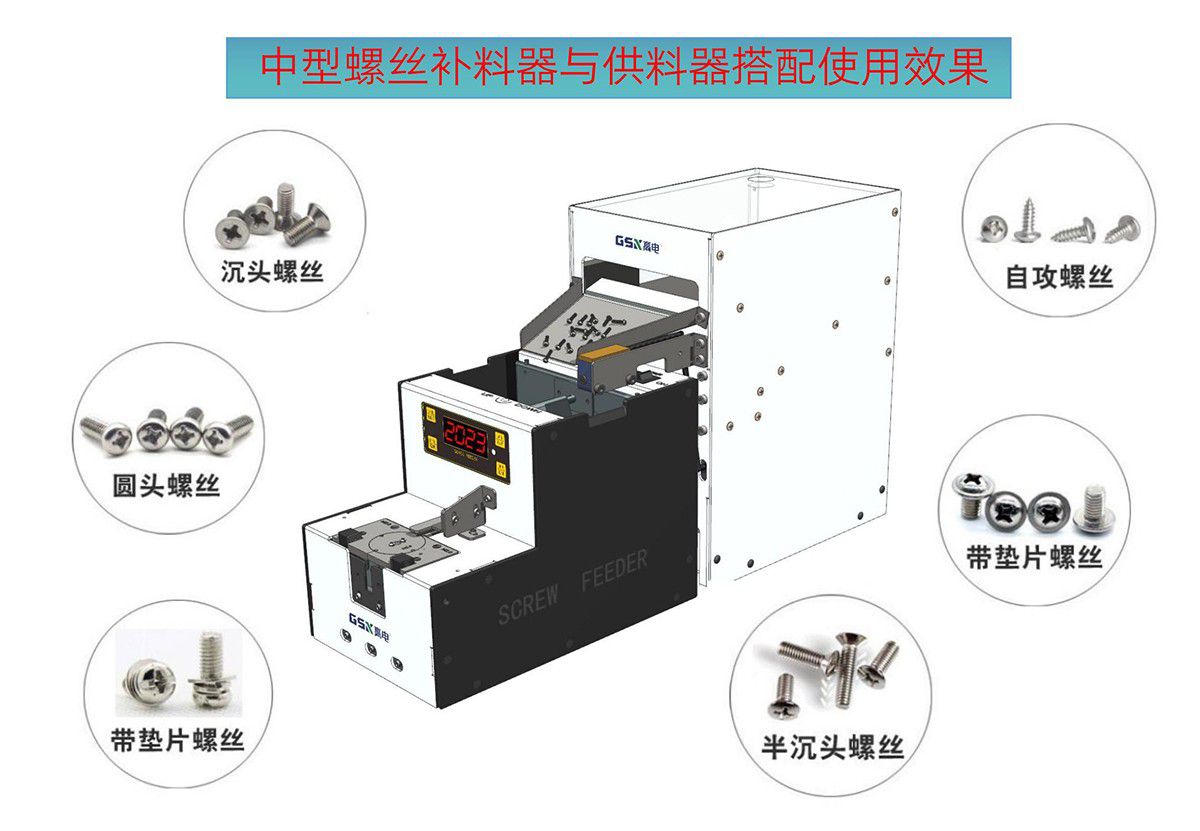

Widely applicable to a variety of types and lengths of screws, such as M1.2-M5.0 round head screws, flat head screws, self-tapping screws, with gasket screws, countersunk screws and other ordinary and non-standard screws.

3. Can greatly improve production efficiency

When the number of screws in the screw machine is insufficient, it will automatically trigger the photoelectric sensor device of the feeder. After receiving the feeding command, the feeder will automatically fill the screw feeder according to the set parameters, which greatly reduces the efficiency loss caused by the shutdown of artificial screw filling.

4. Screw count function

The screw machine is equipped with a digital display panel, through which the setting parameters can be personalized adjusted.
