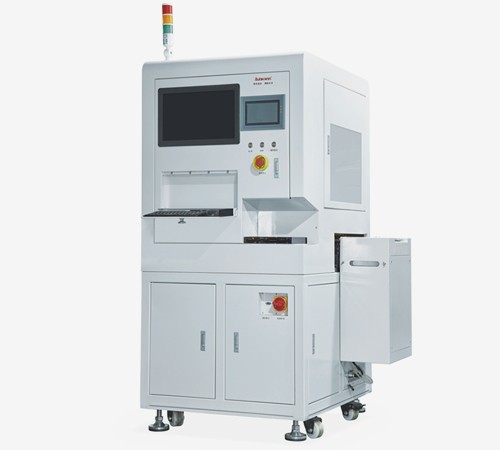

GSK AT-DGZX-001 Double-layer Track Automatic Reflux Locking Screw Machine (M1-M5)

* Size: 1000*1360*1700 (L*W*H)

* Lock payment range: 200*390*70 (can be customized according to customer products)

* Transmission mode: precision servo motor/linear motor module

* Screw extraction method: vacuum suction

* Suitable screw: M1-M5

* Control system: PLC or motion control card system + industrial computer +CCD+ visual programming

* Positioning accuracy: soil 0.02mm

* Lock speed: 1-2 seconds /PCS (depending on screw length)

* Lock payment defective rate: ≤0.2%

* Lock torque: touch screen setting torque and speed/segmented torque output // torque waveform

* Function description: Double track lock/width adjustable /CCD coordinate positioning/missing lock/floating lock/slip tooth determination/docking MES system/vehicle can achieve automatic reflux without manual intervention

* Hardware configuration: Electrical parts/screw/slide/module are all well-known brands

* Working air pressure: 0.5-0.7Mpa

* Power supply: AC220-240V, 10A

* Applicable products: mobile phones, tablets, etc
