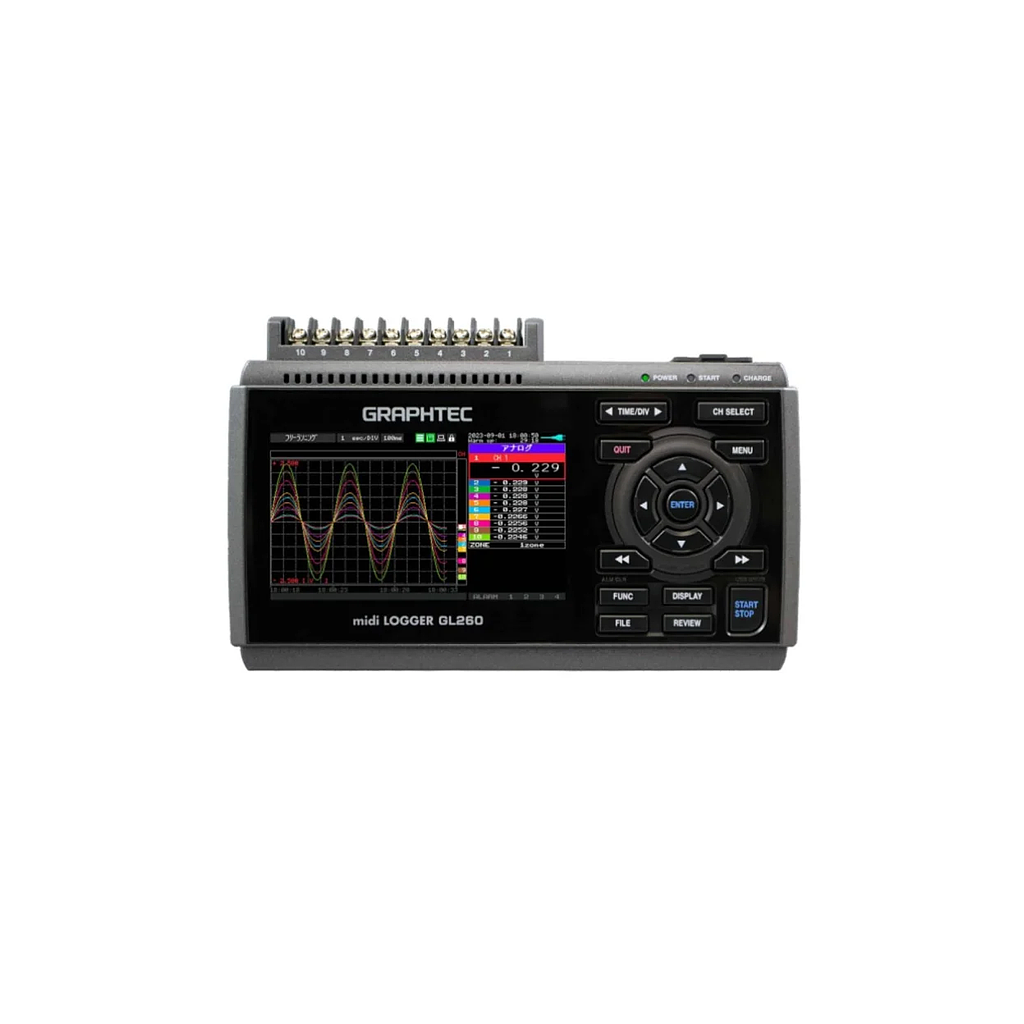

GRAPHTEC GL260 Multi-channel Data Logger

Analog input

Number of channels: 10ch / Screw terminal (M3)

Type: Scans channels for sampling, All channels isolated, balanced input

Measurement range:

Voltage: 20mV - 100V, 1-5V F.S.

Thermocouple: K, J, E, T, R, S, B, N, C and (the old W: WRe5-26)

Humidity: 0 - 100% (optional item B-530 is required)

Filter: Off, 2, 5, 10, 20, 40 (moving average in selected number)

Max. input voltage:

Between(+) / (-) terminal:

20mV - 1V range: 60V p-p

2V - 100V range: 110V p-p

Channels ((-) / (-)): 60Vp-p

Channel / GND: 60Vp-p

External input

Number of channels: Trigger of Sampling (1 channel), or External Sample Inputs 1ch

Logic / Pulse (4 channel)

Pulse input:

Rotation count (RPM) mode(*2), Accumulating count mode, Instant count mode

Max. input frequency: 50kHz / Max. count: 50kc / sampling

External output (*1): Alarm output: 4ch

Scaling function: Analog channel, Pulse channel

Sampling interval A/D converter:

10ms - 1h (10ms to 50ms: voltage only, limited number of CH), External signal

ΔΣ type, 16Bit (effective resolution: 1/40,000 of ± range)

PC I/F: USB2.0, wireless LAN (optional item B-568 is required)

Storage medium

Storage: Built-in memory: approx. 8GB, SD card slot: 1 medium (*3)

Data format: GBD / CSV

Capturing mode: OFF (default), Ring, Relay

Other functions: Calculation function, Trigger, Alarm function, Data backup function(*4)

Display 4.3” TFT (WQVGA: 480 x 272 dots)

Operating environment (*5): 0 - 45℃, 5 - 85% RH

Power source

AC adaptor: AC100 - 240V / 50 - 60Hz

DC input: DC8.5 - 24V (optional item B-514 is required)

Battery pack: DC7.2V(2875mAh)(optional item B-573 is required)

Power consumption: Max. 36VA (when AC100V)

Dimentions: 188(W) x 117(D) x 42(H) mm

Weight: 500g (excluding AC adaptor and battery pack)

Vibration resistance: Equivalent to Automobile parts Type 1 Class A
