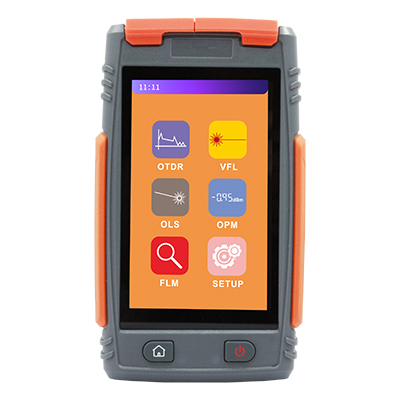

Grandwaytelecom M-1000S Smart OTDR (1650nm; 500m ~ 120km)

Wavelength: 1650nm

Dynamic Range: 20dB

Dead-zone: 3m/10m

Test Range: 500m~120km

Pulse Width: 3ns~10us

Test Time: 5s~180s

Test Mode: Auto, Manual, Real-time

Sampling Point: 30000

Distance Accuracy: ±(1m+Test distance×3×10^-5 +Sampling resolution) (excluding IOR uncertainty)

VFL:

Working wavelength: 650±10nm

Output power: 10mW, CW/1Hz/2Hz

Stable OLS:

Working wavelength: Consistent with OTDR

Output power: >-12dBm, CW/270Hz/1kHz/2kHz

Normal OPM (Standard)

Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm

Test range: -40~+10dBm

10G PON Selective OPM (Optional)

Support 1490nm and 1577nm selective power testing separately

Calibrated wavelength: 850/1300/1310/1490/1550/1577/1625/1650nm

Optical Interface

OTDR/OLS: Fixed SC/UPC (APC is available)

VFL/OPM: 2.5mm universal port

Electrical Interface: USB Type-C charging port and data port

Display: 4inch color touch screen

Data Storage: 120M storage card

Battery: 4000mAh lithium battery

Working Environment: -10℃~+50℃; 0~85%(non condensing)

Dimension/Weight: 85x148x37mm/275g
