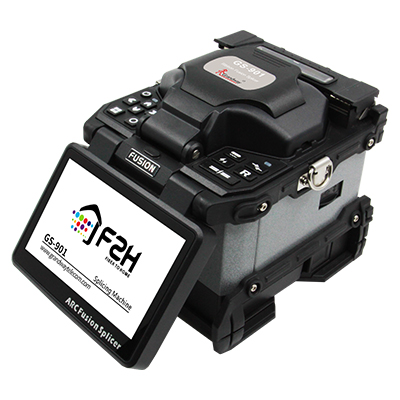

Grandwaytelecom GS-901 Ribbon fiber fusion splicer

Alignment method: Clad to clad

Applicable fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)

Fiber cores quantity: Single core, 2–12 cores

Coating diameter: 250–400μm

Typical splice loss: SM: 0.05dB; MM: 0.02dB; DS: 0.08dB; NZDS: 0.08dB

Return loss: >60dB

Splicing program: 40 groups

Operation mode: Manual / Automatic

Auto-heating: Available

Typical splice time: 20 seconds

Typical heating time: 1–2 cores: 26 seconds; 4–12 cores: 40 seconds

Fiber magnification: 25X

Viewing display: Dual high sensitivity camera, 5 inch 800×480 LCD Touch Screen Monitor

Data storage: 10,000 groups data records and 200 groups images

Loss evaluation: Available

Tension test: 1.8~2.2N

Interface: GUI menu interface, easy for operation

Battery capacity: 5200mAh Li-battery, 150 cycles splicing and heating

Power supply: Adaptor, input: AC100–240V(50/60Hz), output: DC11–13.5V

Electrode life: More than 3000 ARC discharges, easy to replace

Terminals: USB 2.0 port, for software upgrading, records exporting

Operating: Altitude 0–5000m; Humidity 0–95%; Temperature -10℃ ~ +50℃; Wind: max 15m/s

Dimension/Weight: 155mm(L) × 144mm(W) × 155mm(H) / 2.3kg (including battery)
