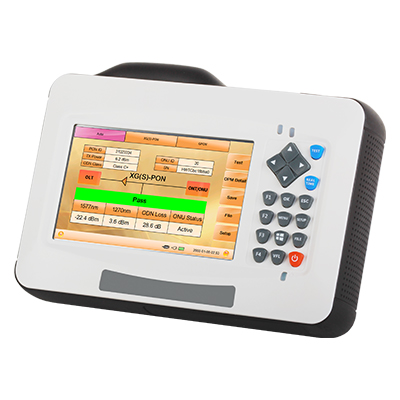

Grandwaytelecom FOH-200XGS-MAX PON tester (Downlink 1490nm/1577nm, uplink 1270nm/1310nm)

Applicable Network: XG(S)-PON, GPON, 10G-EPON, EPON

Test Mode: Series connect: Two ports pass-through mode

Insertion Loss: <1.5dB

PON Data Parsing:

OLT info: OLT PON ID, ODN class, Tx power

ONU info: ONU ID, ONU SN

Power Measurement:

Downlink: 1490nm and 1577nm

Uplink: 1270nm and 1310nm

OTDR Function:

Dynamic range: 20dB

Wavelength: 1650nm (1550nm optional)

Deadzone: 1m/4m

Optical Interface: SC/APC × 2

Charging Port: USB Type-C, 20W quick charge

Power Supply: 5000mAh lithium battery, input: 5V/2A

Display: 5 inch touch screen

Wireless: Bluetooth with Android phone app

Data Storage: 16G TF Card

Working Temp: -10°C ~ 50°C

Humidity: 5% – 95% (no condensation)

Dimension: 195 × 141 × 44 mm

Weight: 900g
