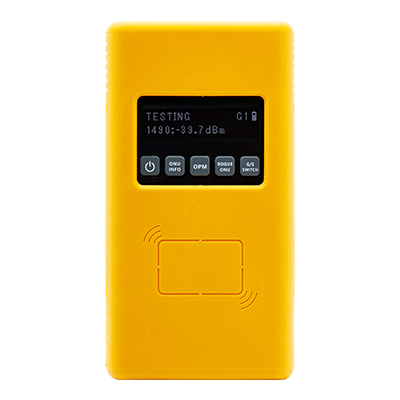

Grandwaytelecom FOH-100 G/EPON Tester

Applicable PON network: GPON + EPON

Test Mode: Series connect; two ports pass through mode

Insertion loss: No insertion loss, the optical signal power will be enhanced 3~10dB when FOH-100 series connect to the PON network

Wireless: Bluetooth connection with Android phone app

Protocol Analysis:

OLT info: PON ID, OLT Tx power, class level

ONU information: Online ONU SN, Password, PPPOE

ONU Status Identification: Online, ONU unregistered, Rogue ONU(100% accuracy) Offline, No ONU（60% accuracy）

High-precision OTDR: Not available

Rogue ONU detection: Support fast identification and location of rogue ONU before the first splitter

PON Power Meter: 1310nm: -30~+5dBm; 1490nm: -30~+5dBm

Optical Interface: SC/UPC or SC/APC

Charging Port: USB Type-C charging port

Power Supply: 7500mAh lithium battery; Input: 5V/2A

Working Temp: -10°C ~ 50°C

Humidity: 5% ~ 95% (no condensation)

Dimension: 175×94×46.5mm

Weight: 700g
