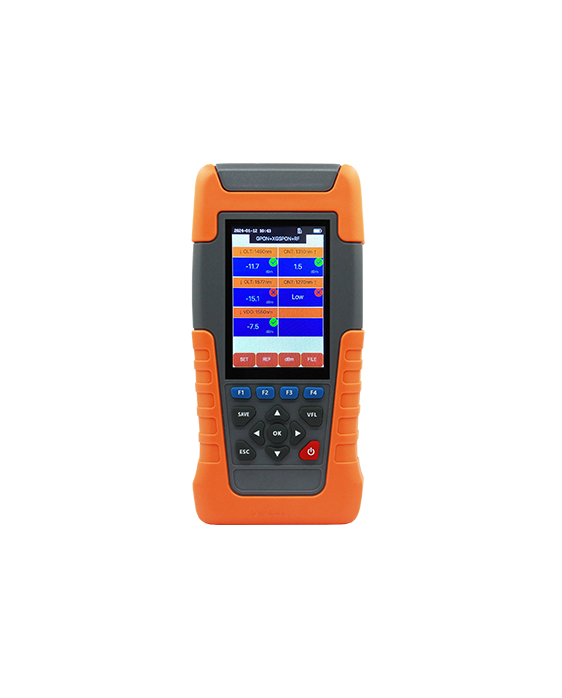

Grandwaytelecom FHP3P05 PRO 10GPON Power Meter

10G PON Power Meter

Wavelength: 1270nm, 1310nm, 1490nm, 1550nm, 1577nm

Measurement Range (dBm): +10 ~ –35 (1270/1310nm), +12 ~ –40 (1490nm), +25 ~ –40 (1550nm), +12 ~ –40 (1577nm)

Spectral Passband: 1270±10nm, 1310±10nm, 1490±10nm, 1550±10nm, 1577±6nm

Insertion Loss: ≤1.5dB

Uncertainty: ≤0.5dB

Display Resolution: 0.01dB

Display Unit: dBm/dB/mW

Threshold Setting: Support user defined

VFL

Wavelength: 650±10nm

Output Power: 10mW

Working Mode: CW, 1Hz/2Hz

Optical Port: Universal 2.5mm

Display: 3.5-inch touch screen LCD

Optical Port: 2SC/APC or 2SC/UPC

Charging Port: USB Type-C USB port

Power Supply: 5000mAh lithium battery, Standby >20h, Measuring time >12h

Data Storage: 16G TF card, 1000 traces

Working Temp: –10°C ~ +50°C

Storage Temp: –40°C ~ +70°C

Dimension: 192.9L × 93.8W × 47Hmm

Weight: 480g
