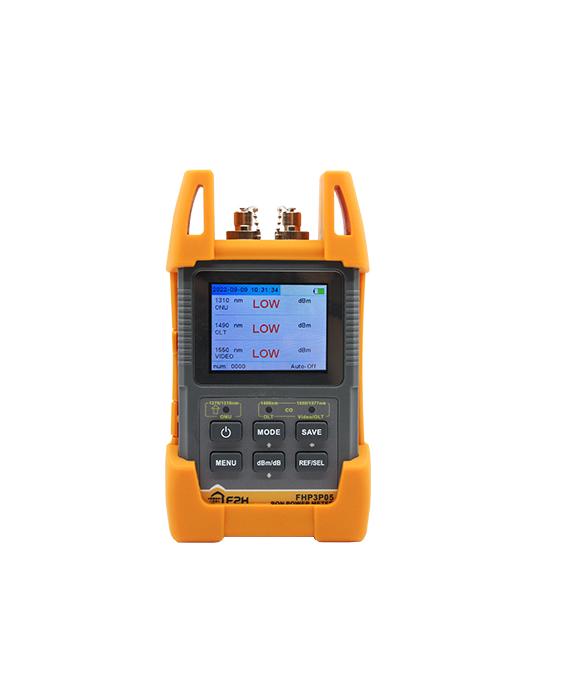

Grandwaytelecom FHP3P05 10GPON Power Meter

Wavelength: 1270/1310nm, 1490nm, 1550/1577nm

Measurement Range (CW mode): 1270/1310nm: –40dBm ~ +10dBm;

1490nm: –50dBm ~ +15dBm;

1550/1577nm: –50dBm ~ +20dBm

Measurement Range (Burst mode): 1270/1310nm: –30dBm ~ +10dBm

Spectral Passband: 1270/1310nm (1240nm1360nm), 1490nm (1480nm1500nm), 1550/1577nm (1539nm~1610nm)

Insertion Loss: ≤1.5dB

Uncertainty: ±0.5dB

Linearity: ±0.2dB

Resolution: 0.01dB

Data Storage: 1000 groups

Display: 2.8 inch TFT LCD

Threshold: 10 sets (Configured via PC software)

Auto Power-off: 10 minutes

Number of Ports: 2 (left ONU port, right OLT & Video port)

Optical Port: FC/PC, SC/PC (APC optional)

Communication Port: USB Type-C interface

Power Supply: 1.2V*4 pcs Ni-MH AA battery; 5V/1A AC/DC adapter

Working Temp: –10°C ~ +50°C

Dimension: 190L × 105W × 55H mm

Weight: 700g
