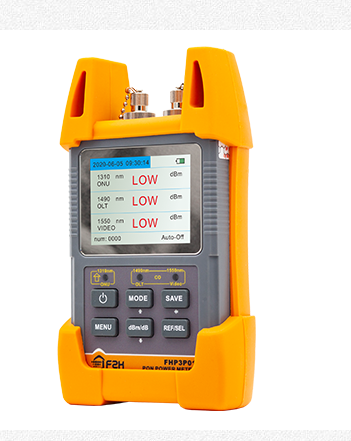

Grandwaytelecom FHP3P01 PON Optical Power Meter (1310/1490/1550nm; –40~+10dBm/ –50~+15dBm/ –50~+20dBm)

Wavelength: 1310nm, 1490nm, 1550nm

Sensor Type: InGaAs

Isolation Rate:

1490nm >40dB, 1310nm >40dB, 1310nm >40dB

1550nm >40dB; 1550nm >30dB, 1490nm >30dB

Test Range: –40~+10dBm (1310nm), –50~+15dBm (1490nm), –50~+20dBm (1550nm)

Insertion Loss: ≤1.5dB

Broadband: 1260–1360nm, 1480–1500nm, 1539–1565nm

Accuracy: ±0.5dB ±1nW @1550nm

Resolution: 0.01dB

Threshold: 10 groups (configured via PC software)

Data Storage: 1000

Working Temp: –10℃ ~ +50℃

Communication Port: Type-C USB port

Power Supply: 4Ni-MH AA battery

External Power Supply: 5V/1A AC/DC adapter

Dimension/Weight: 190L × 105W × 55H (mm) / about 700g

Accessories: Power adapter, USB cable, 2*FC adapter, 2*SC adapter, 3*ceramic sleeves, 4*Ni-MH AA battery, Test report, Quick guide, Carrying bag
