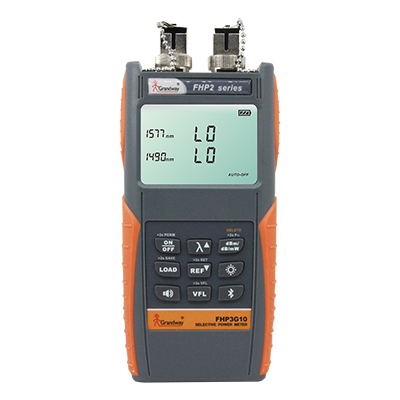

Grandwaytelecom FHP3G10 PON Selective Power Meter (–40~+10dBm/ –40~+20dBm)

Optical Port: OPM: SC/UPC or SC/APC; VFL: SC/UPC

Calibrated Wavelength: 1490nm / 1550nm / 1577nm

Test Range:

1490nm/1577nm: –40 ~ +10dBm

1550nm: –40 ~ +20dBm

Test Accuracy: ±0.5dB

Resolution: 0.01dB

Display Unit: dBm / dB / mW

Isolation: 1490nm >35dB; 1550nm >35dB; 1577nm >35dB

VFL: 10mW, CW / 2Hz

Memory Capacity: 999 groups

Threshold Setting: 10 groups (Pre-set by PC software)

Communication Port: Type-C USB port

Bluetooth: Optional

Power Supply: 2*2500mAh Ni-MH AA battery

External Power Supply: 5V/1A; AC/DC adapter

Working Temp: –10℃ ~ +50℃

Storage Temp: –20℃ ~ +70℃

Dimension: 160L × 76W × 45H (mm)

Weight: 249g
