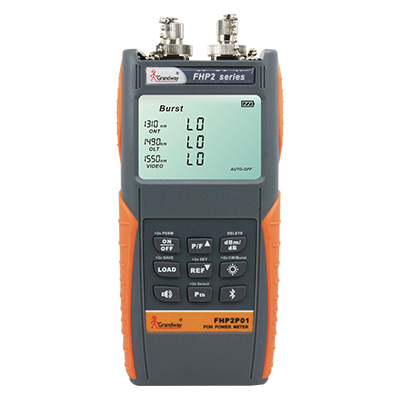

Grandwaytelecom FHP2P04 PON Optical Power Meter (+13~–10 dBm; +13~–30dBm; +13~–50dBm; +17~–50dBm)

Calibrated Wavelength: 1270nm; 1310nm; 1490nm; 1577nm

Measuring Range (dBm) CW mode: +13 ~ –10; +13 ~ –30; +13 ~ –50; +17 ~ –50

Measuring Range (dBm) Burst mode:+13 ~ –10; +13 ~ –30 

Spectral Passband:1270±10nm; 1310±20nm; 1490±10nm; 1577±6nm

Insertion Loss: ≤1.5dB

Uncertainty: ≤0.5dB

Display Resolution: 0.01dBm

Display Unit: dBm/dB

Threshold Settings: Support 10 groups user defined (Pre-set by PC software)

Display: 2.5-inch LCD

Optical Port: 2SC/APC or 2SC/UPC

USB Port: USB Type-C interface for charging and test results upload

Memory Capacity: 700 groups

Wireless: Bluetooth

Power Supply: 2*2500mAh Ni-MH AA battery

External Power Supply: 5V/1A; AC/DC adapter

Working Temp: –10°C ~ +50°C

Storage Temp: –20°C ~ +70°C

Dimension: 160L × 76W × 45H (mm)

Weight: 300g
