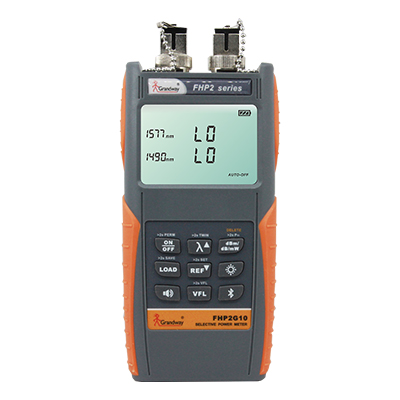

Grandwaytelecom FHP2G10 PON Selective Power Meter (–40 ~ +10dBm)

Optical Port: OPM: SC/UPC or SC/APC; VFL: SC/UPC

Calibrated Wavelength: 1270/1310/1490/1550/1577/1625nm

Test Range: –40 ~ +10dBm

Test Accuracy: ±0.5dB

Resolution: 0.01 dB

Display Unit: dBm/dB/mW

Isolation: 1490nm >35dB, 1577nm >35dB

VFL: 10mW, CW / 2Hz

Memory Capacity: 999 test results

Communication Port: Type-C USB port

Bluetooth: Optional

Power Supply: 2*Ni-MH AA battery

External Power Supply: 5V/1A AC/DC adapter

Working Temp: –10°C ~ +50°C

Storage Temp: –20°C ~ +70°C

Dimension: 160L × 76W × 45H (mm)

Weight: 300g
