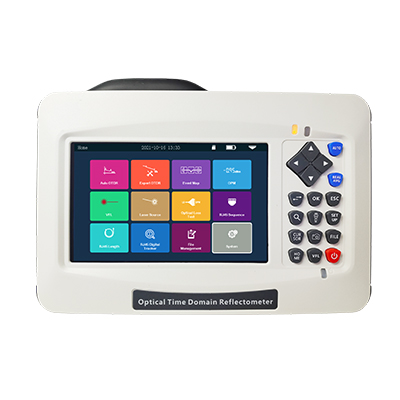

Grandwaytelecom FHO3000L OTDR (1310nm / 1550nm; 3ns ~ 20us)

Fiber type: G.652 SM fiber

Wavelength: 1310nm / 1550nm

Dynamic Range: 26 / 24dB

Event deadzone: 2.5m

Attenuation deadzone: 8m

Test range: 3ns ~ 20us

Pulse width: 500m / 1km / 2km / 4km / 8km / 16km / 32km / 64km / 100km

Distance accuracy: ±(1m + 0.005% × test distance + sampling resolution)

Linearity: ±0.5dB/dB

Sampling points: 16k ~ 128k

Sampling resolution: 0.05m ~ 8m

Loss resolution: 0.001dB

Distance resolution: 0.001m

Loss threshold: 0.20dB

IOR setting: 1.00000 ~ 2.00000

Reflectance accuracy: ±3dB

File format: SOR standard file format

Loss test mode: 4-point / 5-point method

Laser safety level: Class II

Optical port: FC/UPC (SC, ST is optional)

Refresh rate: 3Hz (Typ.)
