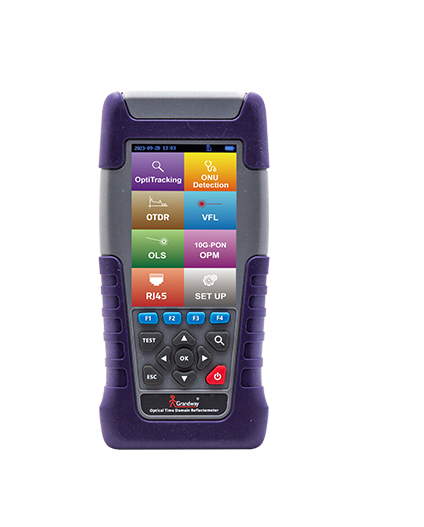

Grandwaytelecom FHO1500PLUS Optical Explorer

AI Module

Test End Setting:

Normal mode (Fiber link map function)

Fiber end is ONU (Test from splitter towards to ONU)

Fiber end is Splitter (Test from ONU towards to splitter)

First connector insertion loss and the ONU/Splitter connectivity state can be tested

ONU Module (ONU Status Identification)

ONU Status Type: ONU Online, ONU Offline, No ONU (Disconnected), Rogue ONU

OTDR

Wavelength: 1550nm/1625nm/1650nm is optional (3 select 1)

Dynamic Range: 20dB

Deadzone: Event dead zone: 1m, Attenuation dead zone: 4m

Test Range: 500m~120km

Pulse Width: 3ns~20us

Distance Accuracy: ±(1m + Test distance × 3×10⁻⁵ + Sampling resolution) (excluding IOR uncertainty)

10G PON Optical Power Meter

Calibrated Wavelength: Simultaneously display 1490nm, 1577nm and 1270/1310nm power

Test Range: -40~+10dBm

Test Accuracy: ±0.35dB

Stable Laser Source

Wavelength: Consistent with OTDR

Output Power: ≥-12dBm

Working Mode: CW/270Hz/1kHz/2kHz

VFL

Wavelength: 650nm ± 10nm

Output Power: 10mW; CW/1Hz/2Hz

RJ45 Cable Test

Line Sequence Standard: TIA-568A or TIA-568B standard

Others

Optical Interface: 2SC/UPC port, 12.5mm universal port for VFL

Electric Interface: 2*RJ45 port, RJ45 remote module, Type-C charging/data port

Wireless: Bluetooth connection with Android phone app

Display: 3.5 inch color LCD

Data Storage: Pluggable 16GB micro SD card

Battery: 5000mAh lithium battery

Working Condition: -10°C ~ +50°C / 0~85% (Non condensing)

Dimension/Weight: 192.9(L) × 93.8(W) × 47(H)mm / 0.58kg
