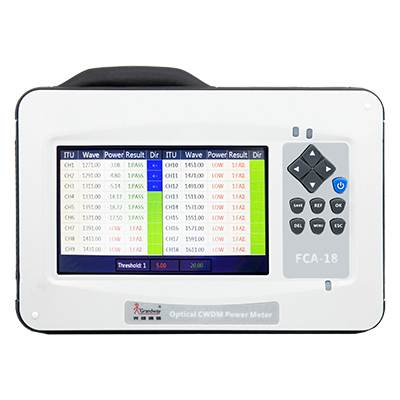

Grandwaytelecom FCA-18B Optical Power Meter (-40~+10dBm, single optical port)

Detector Type: InGaAs

Fiber Type: SM fiber

Calibrated Wavelength: 1271~1611nm

Test Range: -40~+10dBm

Number Of Channels: 18

Channel Spacing: 20nm

Accuracy: ±1dB

Display Resolution: 0.01dB

Isolation: >25dB

Threshold Setting: 10 groups

Insertion Loss: <1.5dB

Data Storage: 500 groups

Interface:

Optical port: FC/UPC

Charging port: USB Type-C

Wireless interface: Bluetooth

Battery Working Time: Standby > 48 hours

Working Temp: -10℃ ~ +60℃

Humidity: 0~90% (Non condensing)

Dimension: 195L×141W×44H(mm)

Weight: 0.8kg

Number of Testing Ports: Single Optical Port

Support Online Testing: No
