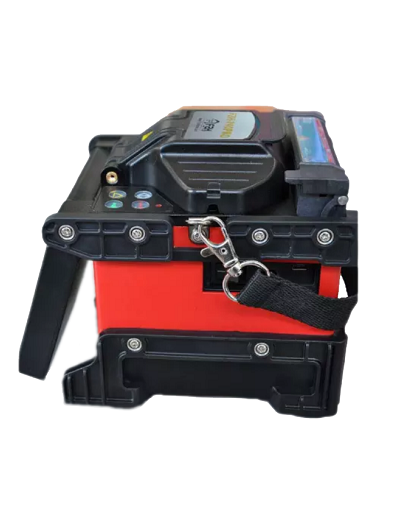

Grandwaytelecom F2H-740 PRO Fusion Splicer

Fiber Diameter: Cladding Diameter: 80–150 μm; Coating Diameter: 100–1000 μm

Applicable fibers: SM, MM, DS, NZDS, G655, G657 and others

Splice loss: 0.01dB (MM), 0.02dB (SM), 0.05dB (DS/NZDS/G.655/G.657)

Return loss: 60dB

Tension test: 2.0N

Protection sleeve length: 25mm, 40mm, 50mm

Tube-heat Time: 20S

Splicing program: Automatic Setting

Language: Chinese, English and others

Alignment: Core Alignment (PAS Technology)

Splicing method: Arc splicing

Fiber Holder: Replaceable and suitable for the splice of bare fiber, pigtail, patch cord, optical fiber drop cable and SC, FC, LC connector

Display: Color 4.3 Inch TFT

Interface: USB, suitable for data download and software update

Splice Memory: 10000

Electrode Span: At least 5000 times

Operating Temp: -18℃ ~ 50℃

Storage Temp: -40℃ ~ 80℃

Window Protection: Max. wind velocity of 15m/s

Power Supply: Internal Li-Battery, DC adaptor

DC output: 12V/2A Power for external heater, light or hot jacket stripper

Battery Capacity: More than 200 times of continuous splices and heats

Dimension: 122mm (L) × 122mm (W) × 130mm (H)

Weight: 2.0KG (Include battery)
