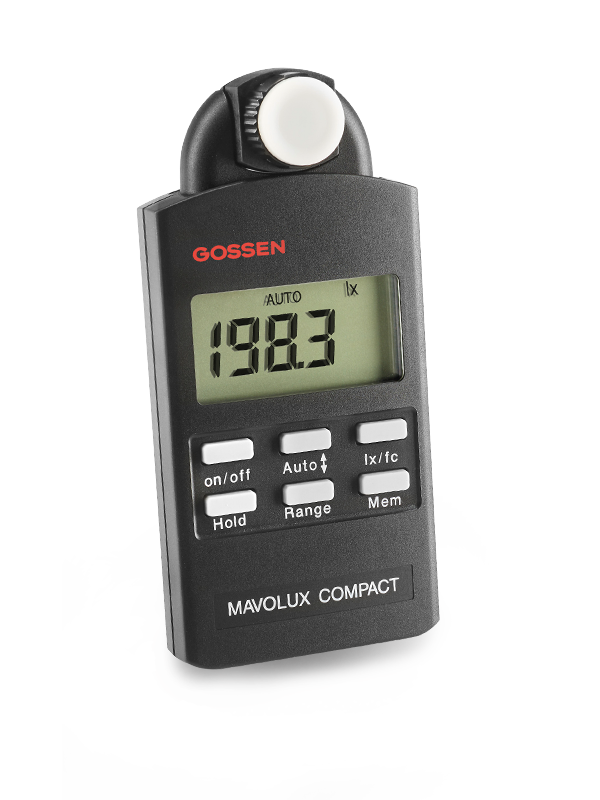

Gossen MAVOLUX COMPACT Precision Luxmeter (0.1~199 900 / 0.01~19990 fc)

MAVOLUX COMPACT

Type: Precision Luxmeter

Classification: Class C DIN 5032-7 / EN 13032-1 appendix B

MEASURING FUNCTIONS

Illuminance [Lux]: 0.1 lx … 199 900 lx / 0.01 fc … 19990 fc

Measuring ranges: 4

Measuring range selection: Automatic / Manual

Measuring rate: 2 per second

Measuring sensor: Silicon photodiode with V (λ) filter

Measured value memory: 100 measured values

Error limit – V( λ) adapted (f1′) typical: < 7.5 %

Error limit – overal error typical: ≤ 15 %

Accuracy: ± 3 % of reading + 1 digit

OPERATION

Display: 3 1/2 digit LCD

Back-Light: •

Operating elements: 6 keys

POWER SUPPLY

Battery: 2 x 1.5V mignon , type AA

Automatic battery control: •

Automatic shutdown: 4 min / continuous operation

Battery service life: Approx. 45 h with alkaline manganese battery

MISCELLANEOUS

Operating temperature: 0 °C to 50 °C

Dimensions: 65 mm x 140 mm x 25 mm

Weight: 105 g without battery

Delivery contents: Case, carrying strap, battery, operating instructions, calibration protocol
