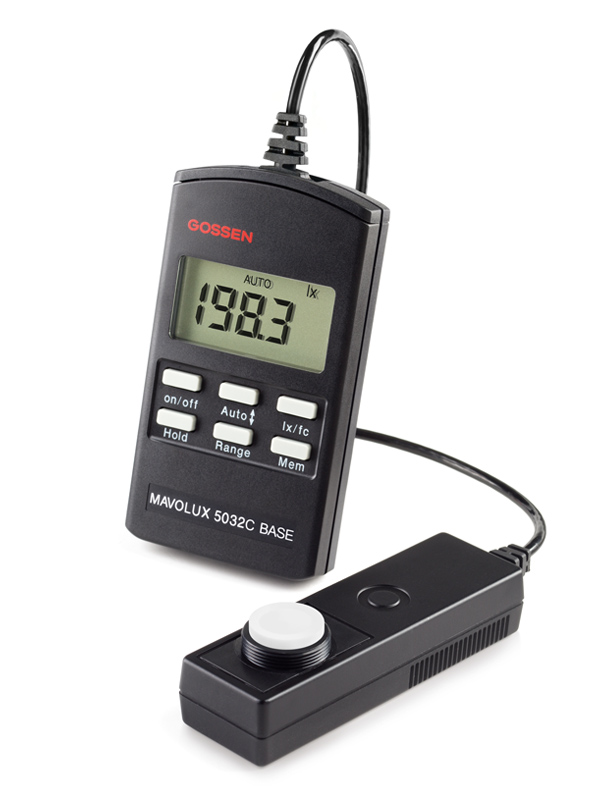

Gossen MAVOLUX 5032 C BASE Precision Luxmeter (0.1~199 900 / 0.01~19990 fc)

Type: Precision Luxmeter

Classification: Class C DIN 5032-7 / EN 13032-1 appendix B

MEASURING FUNCTIONS

Illuminance [Lux]: 0.1 lx … 199 900 lx / 0.01 fc … 19990 fc

Measuring ranges: 4

Measuring range selection: Automatic / manual

Measuring rate: 2 per second

Measuring sensor: Silicon photodiode with V (λ) filter

Probe with tripod thread: •

Measurement cable: 1.5 m, firmly connected

Measured value memory: 100 measured values

Error limit – V(λ) adapted (f1‘), typical: < 7.5 %

Error limit – overall error, typical: ≤ 15 %

Accuracy: ± 3 % of reading ± 1 digit

OPERATION

Display: 3 1/2 digit LCD

Operating elements: 6 keys

POWER SUPPLY

Battery: 2 x 1.5V mignon, type AA

Automatic battery control: •

Automatic shutdown: 4 min / continuous operation

Battery service life: Approx. 45 h with alkaline manganese battery

MISCELLANEOUS

Operating temperature: 0 °C to 50 °C

Dimensions: 65 mm x 120 mm x 19 mm (meter); 31 mm x 105 mm x 30 mm (probe)

Weight: 200 g without battery

Delivery contents: Battery, operating instructions, calibration protocol
