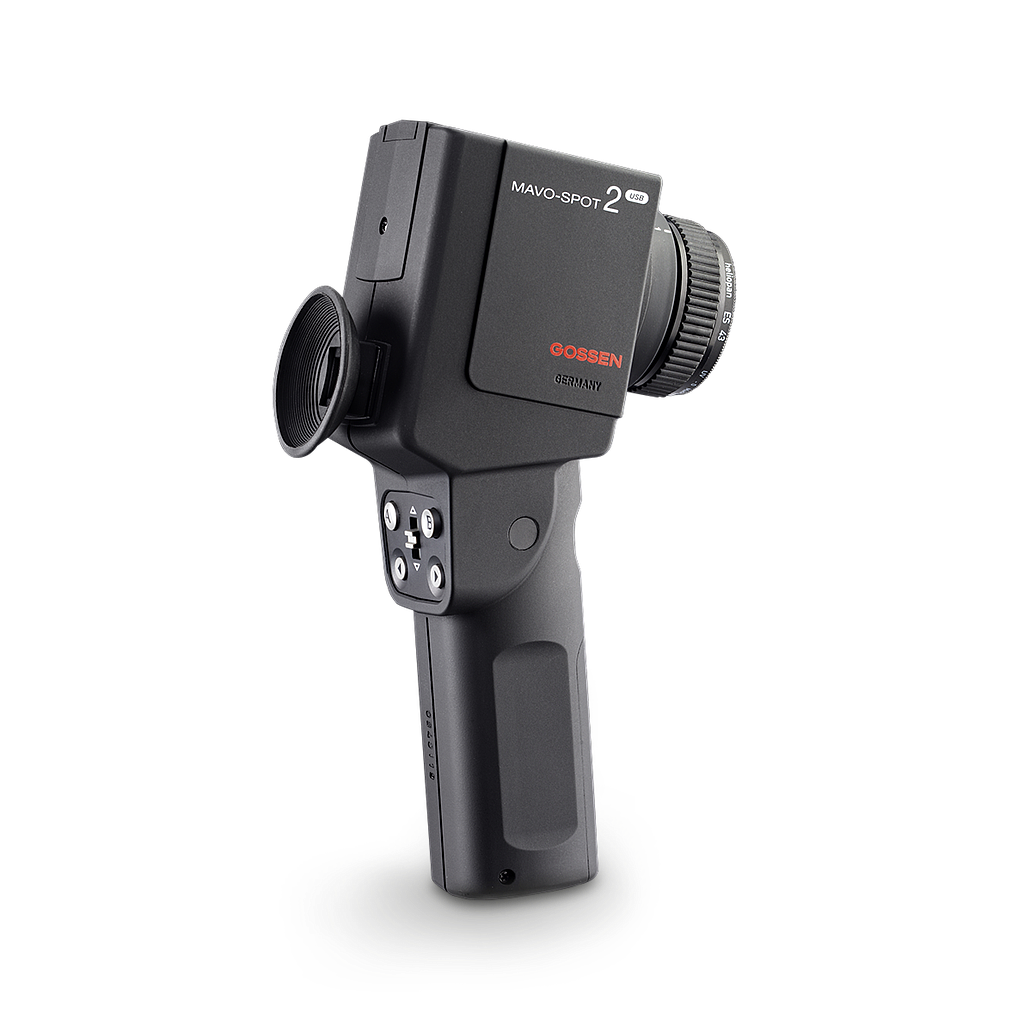

Gossen MAVO-SPOT 2 USB Precision Luxmeter (0.01 ~ 99 990 cd/m² / 0.01~ 30 000 fL)

Type: Precision Luminance Meter

Classification: Class B DIN 5032-7 / EN 13032-1 appendix B

MEASURING FUNCTIONS

Luminance: 0.01 cd/m² … 99 990 cd/m² / 0.01 fL … 30 000 fL

Measuring ranges: 4

Measuring ranges selection: Automatic/Manual

Measuring rate: 2 per second

Measuring method: Distance measurement with 1° measuring angle, 1 m up to ∞, optional contact measurement with measuring probe

Measuring sensor: Silicon photocell with V(λ) filter

Measuring probe with tripod socket: •

Measured value memory: Up to 1000 individual values or 10 groups with 100 individual values each (switchable)

Error limit – V(λ) adapted (f1‘), typical: < 3 %

Error limit – overall error, typical: ≤ 8 %

Accuracy: ±2.5 % of read out ± 2 digit

OPERATION

Display: multifunctional LCD

Back-Light: •

Controls: 4 keys, 1 slide switch, 1 DIP-switch

Interface: USB 2.0

Software: GLUX 2

POWER SUPPLY

Battery: 2 x 1.5V mignon , Type AA

Automatic battery control: •

Automatic shutdown: 30 s

Battery service life: Approx. 5000 measurements

Voltage supply: USB

MISCELLANEOUS

Operating temperature: 0 °C to 50 °C

Dimensions: 190 mm x 90 mm x 57 mm

Weight: 400 g without battery

Delivery content: Aluminum case, GLUX 2 software, eyecup, lens cover, USB cable, battery, operating instructions, calibration protocol
