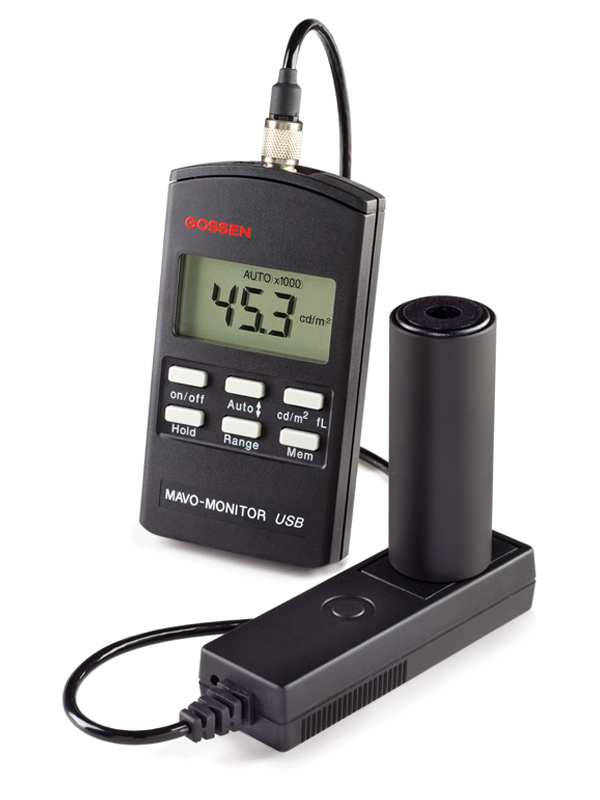

Gossen MAVO-MONITOR USB Precision Luxmeter (0.01 ~19 990 cd/m² / 0.001~1999 fL)

Type: Precision Luminance Meter

Classification: Class B DIN 5032-7 / EN 13032-1 appendix B

MEASURING FUNCTIONS

Illuminance [Lux]: 0.01 cd/m² … 19 990 cd/m² / 0.001 fL … 1999 fL

Measuring ranges: 4

Measuring range change: Automatic / Manual

Measuring rate: 2 per second

Measuring method: contact measurements

Measuring sensor: silicon photo diode with V (λ) filter

Probe with tripod thread: •

Measurement cable: 1.5 m, pluggable

Measured value memory: 100 measurement values

Error limit – V(λ) adapted (f1‘), typical: < 3 %

Error limit – overall error, typical: ≤ 8 %

Error – V(λ)-Matching (f1‘) typical: < 3 %

Accuracy: ± 2.5 % of reading ± 2 digit

OPERATION

Display: 3 1/2 digits LCD

Back-Light: •

Operating elements: 6 keys

Interface: USB 1.1

Software: GLUX 2

POWER SUPPLY

Battery: 1.5V mignon , Typ AA

Automatic battery control: •

Automatic shutdown: 4 min / continuous operation

Battery life: approx. 45 h with alcaline-manganese-battery

Power supply: USB

MISCELLANEOUS

Operating temperature: 0 °C to 50 °C

Dimensions: 65 mm x 120 mm x 19 mm, 2.56 x 4.73 x 75 inch (measuring instrument); 31 mm x 105 mm x 30 mm (measuring probe)

Weight: 265 g without battery

Delivery contents: Aluminium case, adapter disc, GLUX 2 software, USB cable, batteries, operating instructions, calibration protocol

Datasheet
